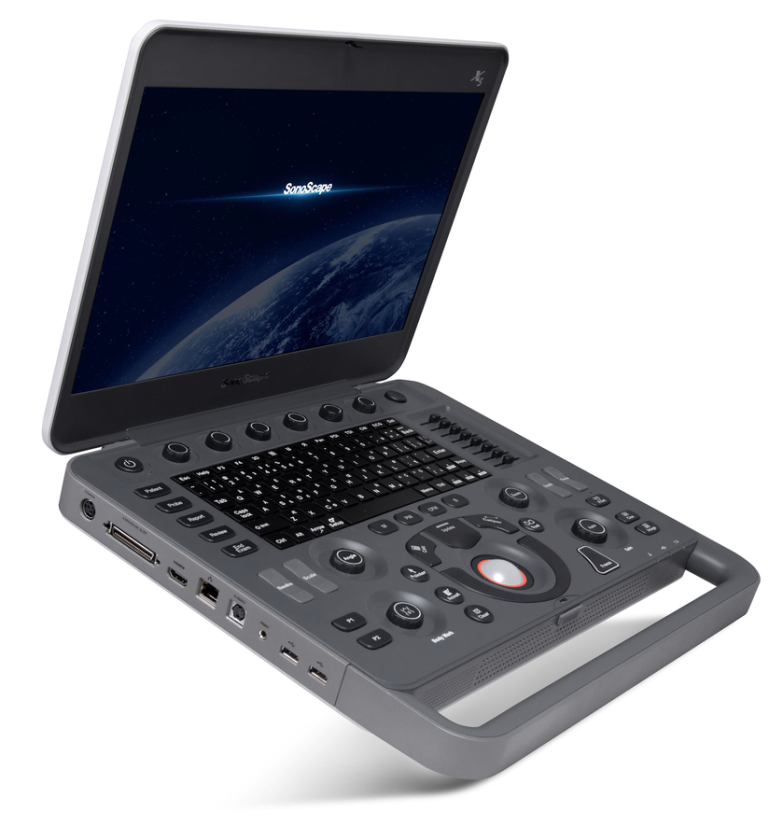

SonoScape X5

Availability: In stock
Delivery Time : 1-2 working days
Item Number
1-191903-0202-025
Call for Price
Delivering Premium Solutions Color doppler middle class hcu with 15.6" high resolution touch screen monitor and 1 transducer socket. 128 phys. channels, 10 imaging levels, compatible to HD probes and latest generation probes, convertible monitor, exchangeable battery. Ultra-thin, ultra-light. Classical keyboard panel. iF Design Award 2017
Email to a Friend

Delivering Excellent Solutions

SonoScape's X5, a culmination of years of innovation, is a new expert hand-carried color Doppler ultrasound system, combining extreme ergonomic design, excellent image quality, exact diagnosis as weil as a wide range of applications for an unprecedented experience. Enjoy an easy to use ultrasound system with advance technology that ensures diagnostic confidence at any level of user expertise.

Features


  • 15.6-inch high definition 50° foldable LED monitor with anti-glare, 180 degree opening angle screen suitable for indoor and outdoor use

  • Elegant keyboard panel

  • 1 pinless transducer socket

  • A comprehensive selection of probes: HD Linear, HD Convex, Micro-convex, Endocavity, HD Phased Array, Intraoperative, TEE, Bi-plane, Pencil, Volumetric, Endocavity 4D and Laparoscopy probe

  • Premium application technology: μ-scan speckle reduction, compound imaging, TDI, stress echo, C-Xlasto elastography, contrast imaging, IMT, B-Steer, automatic flow volume analysis, real-time 4D
  • Wide range of applications including cardiovascular, radiology, OB/GYN, urology, small parts, musculoskeletal, abdomen etc.

  • Frequently used presets can be defined fully flexible

  • ECG functionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Access for foot switch

  • Exchangeable high capacity Li-ion battery for 90 minutes scan function

  • Built-in Wi-Fi and Bluetooth wireless connection ensures files are up to date

  • Optional elegant height-adjustable trolley Full flexible 4.5" castors with brakes for easy transportation



iF Design Award Winner 2017

SonoScape X5 was awarded in 2017 with iF Design Award. iF Design Award 2017 "SonoScape X5 is a professional portable color doppler ultrasound system, used for diagnosing human organs and shallow tissue. The system combines excellent image quality and exact diagnosis as well as a wide range of applications for an unprecedented experience. Doctors can enjoy an easy to use system with advance technology that ensures diagnostic confidence at any level of user expertise. The system is designed extreme ergonomically with thin body, compact keyboard and control panel and can be installed to trolley for easy movement. Its screen with 180° opening angle is anti-glare and suitable for indoor and outdoor use." More information



Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE X5
Item number 1-191903-0202-025
Ultrasound System
Short description Color doppler advanced level hcu with 15.6" monitor and 1 transducer socket. 64 phys. channels, 8 imaging levels. Exchangeable battery, ultra-slim, ultra-light
Product Image SonoScape X5
Multi Beam Processing Technology
Physical Channels 64
Imaging Levels 8
Hardware
Monitor 15.6" HD LCD Wide (with LED backlight)
Resolution in px 1,920x1,080
Flexibility foldable (longitudinal)
Control Panel
Flexibility --
Bottom side Holders for Probe Cables (left/right) --
Slip-on stand-up Cable Holder for Probe Cables ○ (at trolley)
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages) Keyboard on panel
Extendable alphanumeric Keyboard at the Control Panel front side --
Probe sockets 1 (with optional extender up to 3)
Transducers
Number of compatible Probes 11 (will be extended to 20)
HD Probes --
Frequency Range 1-16 MHz
Adoption of 4D Probes --
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements) --
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements) --
Adoption of Latest Generation Convex Probes (3C-A)
Adoption of Single-Crystal Convex Probes --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes --
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1) --
Adoption of Laparoscopy Probes
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes --
Adoption of CW Pencil Probes --
Adoption of PW Pencil Probes --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch
Integrated Gel Warmer --
Handles ○ (trolley with front handle and rear handle for easy transportation)
Battery exchangeable battery for 2h scan time
Printer link-up to B/W thermal printer or color video printer
Castors ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers)
Storage
Storage Media
HDD Storage 500 GB
SSD Storage optional 250 GB
CD/DVD-RW --
Blu-Ray-RW --
Image Storage Capacity 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,575
Cine Playback Time >50 sec
Frame Rate in B Mode (2D) 866 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 105 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC) --
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan --
2D Panorama Imaging
Color Flow Panoramic Imaging
Color 3D --
Real Time 3D/4D
Inversion 4D --
S-Live --
S-Depth --
Freehand 3D Imaging --
3D µ-scan --
Auto Face --
3D Measurement --
Pelvic Floor Ultrasound --
MagiCut/SmartCut --
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF) --
Contrast Imaging --
Stress Echo --
Cardio Vascular Kit Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS --
OB/GYN Kit --
OB/GYN Kit Premium PLUS --
--
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), PW, CW, Triplex
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Gentoo Linux
Interfaces
Data 2 USB Ports
Network LAN, Print, Wi-Fi
Video HDMI Video OUT, S-Video OUT
Audio Audio
Power LINE IN, electrical bonding
DICOM 3.0 Support DICOM 3.0 (Store, Worklist)
Export Formats
Supported Video Formats AVI, WMV
Supported Image Formats JPG, BMP, TIF
Supported Document Formats PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 50/378x339x50/61
Weight [kg] 3.9
Inspection and Maintenance
MPD Class II A
Preventive Maintenance every 6 month
MTK every 12 month
STK every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years
Warranty Extension optional up to 5 years
Spare Part Availability >8 years
Legend
   yes/included
   optional
--  not available


Further Information

Detailed specification on request.
