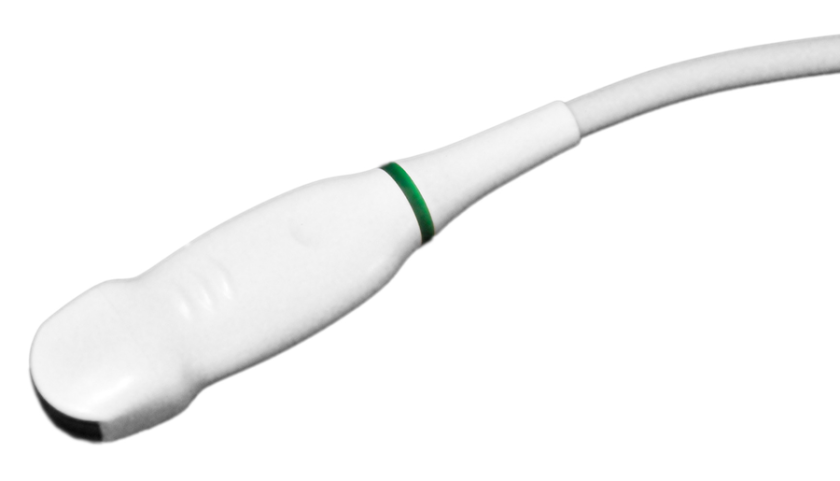

SonoScape C613
In stock
Delivery time:
5-6 working days
Item Number
1-191903-0217-033
Delivery time:
5-6 working days
Micro Convex Probe C613 for cardiac and pediatrics (center frequency 6.5 MHz, FOV 135°). Compatible with SonoScape E1, E1V, E1Exp, E2, E3, X1, X3, X3V, X5, X5V, S8Exp, S9, S9Pro, S12, S22, S40, S50, S60, P9, P10, P15, P20, P25, P40, P50, P60.
Delivery time:
5-6 working days
Micro Convex Probe C613 for cardiac and pediatrics (center frequency 6.5 MHz, FOV 135°).
Application Areas
 |
 |
 |
Technical Specification
| Application: | Cardiac, Pediatrics |
| Center Frequency: | 6.5 MHz |
| Display Frequency: | 3.9-13.0 MHz |
| Switchable Transmit Frequencies: | B-Mode: 5.5-8.5 / 6.0-9.0 / 6.9-10.5 / 7.0-10.8 / 7.3-11.3 MHz CFM: 3.6 / 4.0 / 4.5 / 5.1 / 6.0 MHz THI: 4.0-6.9 / 4.3-8.3 / 4.7-9.0 / 4.9-9.6 / 5.2-13.0 MHz |
| FOV: | 135° |
| Elements: | 128 |
| Radius: | 14 mm |
| Image Depth: | 3-100 mm |
| Biopsy Guide: | available |
| Footprint: | 30x10 mm |
| Compatibility: | SonoScape E1, E1V, E1Exp, E2, E3, X1, X3, X3V, X5, X5V, S8Exp, S9, S9Pro, S12, S22, S40, S50, S60, P9, P10, P15, P20, P25, P40, P50, P60 |
Further Information
Detailed specification on request.
Brochures
| Product Overview Ultrasound Probes View and print brochure in fullscreen |
|
Download brochure as PDF |
