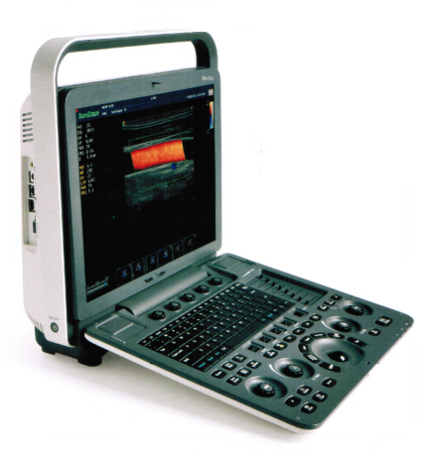

SonoScape S8 Exp

Availability: In stock
Delivery Time : 5-7 working days
Item Number
1-191903-0202-008
Call for Price
The Expert amongst the Portable Colour Doppler Ultrasound Systems Color doppler advanced level hcu with 15" touch screen monitor and 2 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes. New software platform with extra functions like elastography, needle enhancement and more. SonoScape S8 Exp is excellent for nearly every clinical situation, including cardiology, abdominal, OB/GYN, small parts, urology and so on.
Email to a Friend

The Expert amongst the Portable Colour Doppler Ultrasound Systems

S8 Exp is borne from our relentless efforts to be the most innovative ultrasound manufacturer in the world. This compact, portable ultrasound system is excellent for nearly every clinical situation, including cardiology, abdominal, OB/GYN, small parts, urology and so on. The S8 Exp provides a premium, efficient portable ultrasound solution with performance and style.

SonoScape S8 Exp comes with a new software platform compared to SonoScape S8 with a better workflow and additional functions like Elastography, Needle Enhancement etc.

Features


  • 15-inch high definition 50° foldable LED monitor

  • Elegant keyboard panel

  • Two pinless transducer sockets

  • A comprehensive selection of probes: HD Linear, HD Convex, Micro-convex, Endocavity, HD Phased Array, Intraoperative, TEE, Bi-plane, Volumetric, Endocavity 4D and Laparoscopy probe

  • Premium application technology: μ-scan speckle reduction, compound imaging, TDI, stress echo, C-Xlasto elastography, contrast imaging, IMT, B-Steer, automatic flow volume analysis, real-time 4D
  • Wide range of applications including cardiovascular, radiology, OB/GYN, urology, small parts, musculoskeletal, abdomen etc.

  • Frequently used presets can be defined fully flexible

  • ECG functionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Access for foot switch

  • Exchangeable high capacity Li-ion battery for 90 minutes scan function

  • Optional elegant height-adjustable trolley with full flexible 4.5" castors with brakes for easy transportation



Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE S8 EXP SONOSCAPE S8 EXP HOSPITAL EDITION
Item number 1-191903-0202-008 1-191903-0202-108
Ultrasound System
Short description Color doppler advanced level hcu with 15" touch screen monitor and 2 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes Color doppler advanced level hcu with 15" touch screen monitor and 2 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes.  Several exclusive features
Product Image SonoScape S8 Exp SonoScape S8 Exp Hospital Edition
Multi Beam Processing Technology
Physical Channels 64 64
Imaging Levels 8,5 8,5
Hardware
Monitor 15" HD LED Wide 15" HD LED Wide
Resolution in px 1,366x768 1,366x768
Flexibility 50° foldable (longitudinal) 50° foldable (longitudinal)
Control Panel
Flexibility ○ (with trolley height-adjustable) ○ (with trolley height-adjustable)
Bottom side Holders for Probe Cables (left/right) -- --
Slip-on stand-up Cable Holder for Probe Cables ○ (at trolley) ○ (at trolley)
Additional Probe Holder for Endocavity Probes -- --
Touch-Screen Panel -- --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages) Keyboard on panel Keyboard on panel
Extendable alphanumeric Keyboard at the Control Panel front side -- --
Probe sockets 2 (with optional extender up to 6) 2 (with optional extender up to 6)
Transducers
Number of compatible Probes 22 22
HD Probes yes, 256 elements yes, 256 elements
Frequency Range 1-16 MHz 1-16 MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements)
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements)
Adoption of Latest Generation Convex Probes (3C-A)
Adoption of Single-Crystal Convex Probes -- --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1) -- --
Adoption of Laparoscopy Probes
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes
Socket for Pencil Probes -- --
Adoption of CW Pencil Probes -- --
Adoption of PW Pencil Probes -- --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch ECG access, access for foot switch
Integrated Gel Warmer --
Handles ○ (trolley with front handle and rear handle for easy transportation) ○ (trolley with front handle and rear handle for easy transportation)
Battery exchangable battery for 1.5h scan time exchangable battery for 1.5h scan time
Printer link-up to B/W thermal printer or color video printer link-up to B/W thermal printer or color video printer
Castors ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers) ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers)
Storage
Storage Media
HDD Storage 500 GB 500 GB, optional 1 TB
SSD Storage -- 500 GB, optional 1 TB
CD/DVD-RW -- --
Blu-Ray-RW -- --
Image Storage Capacity 200,000 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000 1,000
Cine Playback Time adjustable adjustable
Frame Rate in B Mode (2D) 875 fps 875 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 105 application-specific measurements 16 general measurements, 115 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC)
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan
2D Panorama Imaging
Color Flow Panoramic Imaging
Color 3D -- --
Real Time 3D/4D
Inversion 4D -- --
S-Live
S-Depth
Freehand 3D Imaging
3D µ-scan -- --
Auto Face -- --
3D Measurement -- --
Pelvic Floor Ultrasound -- --
MagiCut/SmartCut
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF)
Contrast Imaging
Stress Echo
Cardio Vascular Kit TDI/Color M/ECG/Steer M TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS -- --
OB/GYN Kit Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut
OB/GYN Kit Premium PLUS -- --
Needle Visualization Enhancement (VIS-Needle)
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Gentoo Linux Gentoo Linux
Interfaces
Data 3 USB Ports 3 USB Ports
Network LAN, Print LAN, Print, Wi-Fi
Video VGA OUT, Video OUT (Composite Video), S-Video OUT VGA OUT, Video OUT (Composite Video), S-Video OUT, DVI
Audio Audio Audio
Power LINE IN, electrical bonding LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R) Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats AVI, WMV AVI, WMV
Supported Image Formats JPG, BMP, TIF JPG, BMP, TIF
Supported Document Formats PDF PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 3 complies with DEGUM Class 3
OEGUM recommended (OEGUM whitelist) recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 357x392x137/412 357x392x137/412
Weight [kg] 7.8 7.8
Inspection and Maintenance
MPD Class II A II A
Preventive Maintenance every 6 month every 6 month
MTK every 12 month every 12 month
STK every 12 month every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years 2 years
Warranty Extension optional up to 5 years optional up to 5 years
Spare Part Availability >10 years >10 years
Legend
   yes/included
   optional
--  not available

Technical Specification SonoScape S8 Exp
  View Technical Specification SonoScape S8 Exp   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.



Brochures

Product Brochure SonoScape S8 Exp
  View brochure SonoScape S8 Exp   View and print brochure in fullscreen
  Download brochure SonoScape S8 Exp   Download brochure as PDF
Product Overview SonoScape Ultrasound Devices
  View brochure SonoScape Ultrasound Devices   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Devices   Download brochure as PDF
Product Overview SonoScape Ultrasound Probes
  View brochure SonoScape Ultrasound Probes   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Probes   Download brochure as PDF
