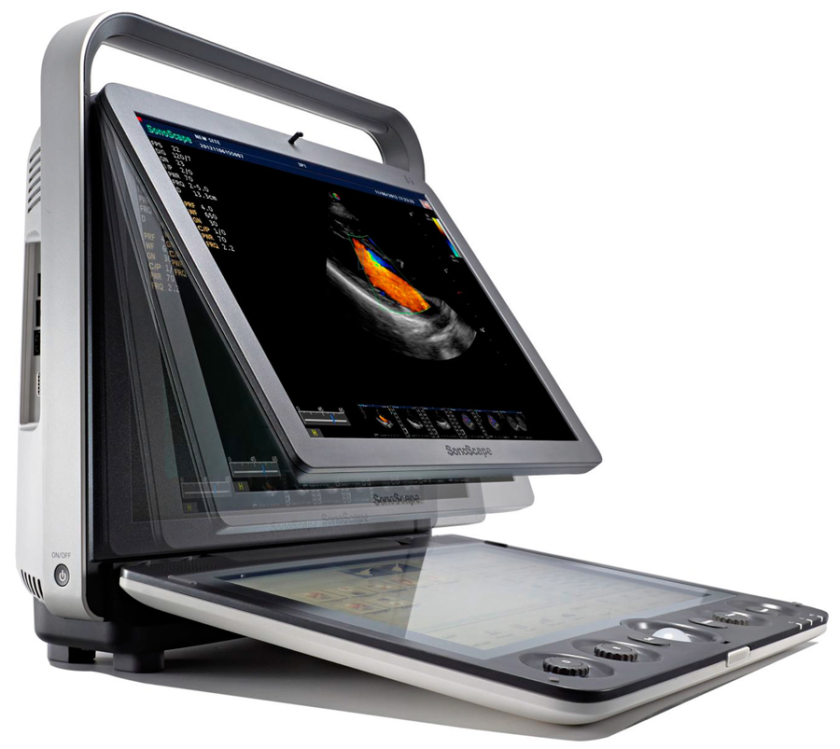

SonoScape S9

Availability: In stock
Delivery Time : 5-7 working days
Item Number
1-191903-0202-010
Call for Price
Feel the difference Color doppler high end hcu with 15" touch screen monitor and 2 transducer sockets. 128 phys. channels, 10 imaging levels, compatible to HD probes and latest generation probes, convertible monitor, exchangable battery. iF Design Award 2014
Email to a Friend

Feel the difference

SonoScape S9 has the most innovative user interface and design of all hand-carried ultrasound systems on the market. The full-sized touch panel of the S9 surpasses the hardware limitation of the traditional keyboard, allowing for easier operation. S9 is SonoScapes' most versatile and elegant hand-carried premium ultrasound device. Using the S9, you will experience a faster operation time on a variety of applications, including the most difficult of diagnostic tasks.

Features


  • 15-inch high definition 50° foldable LED monitor

  • Innovative and elegant touchscreen panel

  • Two pinless transducer sockets

  • A comprehensive selection of probes: HD Linear, HD Convex, Micro-convex, Endocavity, HD Phased Array, Intraoperative, TEE, Bi-plane, Pencil, Volumetric, Endocavity 4D and Laparoscopy probe

  • Premium application technology: μ-scan speckle reduction, compound imaging, TDI, stress echo, C-Xlasto elastography, contrast imaging, IMT, B-Steer, automatic flow volume analysis, real-time 4D
  • Wide range of applications including cardiovascular, radiology, OB/GYN, urology, small parts, musculoskeletal, abdomen etc.

  • Frequently used presets can be defined fully flexible

  • ECG functionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Access for foot switch

  • Exchangeable high capacity Li-ion battery for 90 minutes scan function

  • Optional elegant height-adjustable trolley Full flexible 4.5" castors with brakes for easy transportation



iF Design Award Winner 2014

SonoScape S9 was awarded in 2014 with iF Design Award. iF Design Award 2014 "S9 delivers the latest technological innovations with highly-integrated chip sets, which make it compact but uncompromising in functionality. The intelligent and style-changeable smart touch screen flexes with 140° opening angle, extending its capability in surgical operating room when the ultrasound system must be hung. The 15“-LCD monitor can be adjusted in 50° reduces the fatigue of doctor and extends the comfort while scanning. Its anti-glass function enables a clear view on the image even in outdoor examination. The internal removable battery ensures a continuous 90 minutes’ scanning." More information



Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE S9 SONOSCAPE S9 HOSPITAL EDITION
Item number 1-191903-0202-010 1-191903-0202-110
Ultrasound System
Short description Color doppler high end hcu with 15" touch screen monitor and 2 transducer sockets. 128 phys. channels, 10 imaging levels, compatible to HD probes and latest generation probes, convertible monitor, exchangable battery. Version with touch-screen panel Color doppler high end hcu with 15" touch screen monitor and 2 transducer sockets. 128 phys. channels, 10 imaging levels, compatible to HD probes and latest generation probes, convertible monitor, exchangable battery. Version with touch-screen panel. Several exclusive features
Product Image SonoScape S9 SonoScape S9 Hospital Edition
Multi Beam Processing Technology
Physical Channels 128 128
Imaging Levels 10 10
Hardware
Monitor 15" HD LED Wide 15" HD LED Wide
Resolution in px 1,366x768 1,366x768
Flexibility 50° foldable (longitudinal) 50° foldable (longitudinal)
Control Panel
Flexibility ○ (with trolley height-adjustable) ○ (with trolley height-adjustable)
Bottom side Holders for Probe Cables (left/right) -- --
Slip-on stand-up Cable Holder for Probe Cables ○ (at trolley) ○ (at trolley)
Additional Probe Holder for Endocavity Probes -- --
Touch-Screen Panel -- --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages)
Extendable alphanumeric Keyboard at the Control Panel front side -- --
Probe sockets 2 (with optional extender up to 6) 2 (with optional extender up to 6)
Transducers
Number of compatible Probes 30 30
HD Probes yes, 256 elements yes, 256 elements
Frequency Range 1-16 MHz 1-16 MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements)
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements)
Adoption of Latest Generation Convex Probes (3C-A)
Adoption of Single-Crystal Convex Probes -- --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes (3P1, 5P2, 8P1)
Adoption of Laparoscopy Probes
Adoption of TEE Probes
Adopion of Pediatric TEE Probes
Socket for Pencil Probes
Adoption of CW Pencil Probes
Adoption of PW Pencil Probes
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch ECG access, access for foot switch
Integrated Gel Warmer --
Handles ○ (trolley with front handle and rear handle for easy transportation) ○ (trolley with front handle and rear handle for easy transportation)
Battery exchangable battery for 1.5h scan time exchangable battery for 1.5h scan time
Printer link-up to B/W thermal printer or color video printer link-up to B/W thermal printer or color video printer
Castors ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers) ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers)
Storage
Storage Media
HDD Storage 500 GB 500 GB, optional 1 TB
SSD Storage -- 500 GB, optional 1 TB
CD/DVD-RW -- --
Blu-Ray-RW -- --
Image Storage Capacity 200,000 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000 1,000
Cine Playback Time adjustable, >50s adjustable, >50s
Frame Rate in B Mode (2D) 875 fps 875 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 105 application-specific measurements 16 general measurements, 115 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC)
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan
2D Panorama Imaging
Color Flow Panoramic Imaging
Color 3D -- --
Real Time 3D/4D
Inversion 4D -- --
S-Live
S-Depth
Freehand 3D Imaging
3D µ-scan -- --
Auto Face -- --
3D Measurement -- --
Pelvic Floor Ultrasound -- --
MagiCut/SmartCut
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF)
Contrast Imaging
Stress Echo
Cardio Vascular Kit TDI/Color M/ECG/Steer M TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS -- --
OB/GYN Kit Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut
OB/GYN Kit Premium PLUS -- --
Needle Visualization Enhancement (VIS-Needle)
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic Imaging, Trapezoidal Imaging B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic Imaging, Trapezoidal Imaging
Integrated Patient Data Management System
Operating System Gentoo Linux Gentoo Linux
Interfaces
Data 3 USB Ports 3 USB Ports
Network LAN, Print LAN, Print, Wi-Fi
Video VGA OUT, Video OUT (Composite Video), S-Video OUT, DVI (optional) VGA OUT, Video OUT (Composite Video), S-Video OUT, DVI
Audio Audio Audio
Power LINE IN, electrical bonding LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R) Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats AVI, WMV AVI, WMV
Supported Image Formats JPG, BMP, TIF JPG, BMP, TIF
Supported Document Formats PDF PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 3 complies with DEGUM Class 3
OEGUM recommended (OEGUM whitelist) recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 357x392x137/412 357x392x137/412
Weight [kg] 7.8 7.8
Inspection and Maintenance
MPD Class II A II A
Preventive Maintenance every 6 month every 6 month
MTK every 12 month every 12 month
STK every 12 month every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years 2 years
Warranty Extension optional up to 5 years optional up to 5 years
Spare Part Availability >10 years >10 years
Legend
yes/included
optional
-- not available

Technical Specification SonoScape S9
  View Technical Specification SonoScape S9   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.



Brochures

Product Brochure SonoScape S9
  View brochure SonoScape S9   View and print brochure in fullscreen
  Download brochure SonoScape S9   Download brochure as PDF
Product Overview SonoScape Ultrasound Devices
  View brochure SonoScape Ultrasound Devices   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Devices   Download brochure as PDF
Product Overview SonoScape Ultrasound Probes
  View brochure SonoScape Ultrasound Probes   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Probes   Download brochure as PDF
