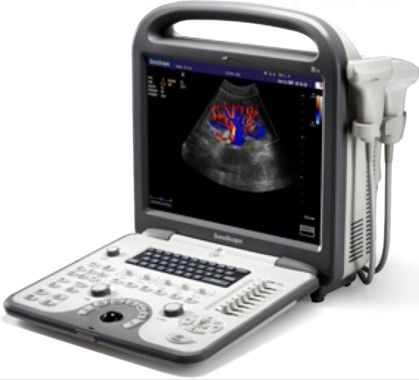

SonoScape S6

Availability: In stock
Delivery Time : 2-3 Tage
Item Number
1-191903-0202-005
The Best Value in Portable Ultrasound Color doppler advanced level hcu with 15" monitor and 2 transducer sockets. 64 phys. channels, 7 imaging levels. SonoScape S6 is developed to service a broad range of clinical applications such as Radiology, OB/GYN, Urology, cardiology, etc.
Email to a Friend

The Best Value in Portable Ultrasound

S6 is a mid-range shared service portable color Doppler system suitable for nearly every clinical need. SonoScape developed this system to service a broad range of clinical applications such as Radiology, OB/GYN, Urology, cardiology, etc. With the help of powerful software packages and professional transducers, the S6 offers tremendous value for every clinician. With its built-in battery, the S6 makes it possible for you to service your patients anywhere at any time.

Features


  • 15-inch high definition LCD monitor

  • Two pinless transducer sockets

  • 14 compatible probes: Linear, Convex, Micro-convex, Endocavity, Phased Array, Intraoperative, Bi-plane, Volumetric 4D

  • Premium application technology: μ-scan speckle reduction, compound imaging, Tissue Harmonic Imaging (THI)
  • Wide range of applications including cardiovascular, radiology, OB/GYN, urology, small parts, musculoskeletal, abdomen etc.

  • Frequently used presets can be defined fully flexible

  • ECG functionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Access for foot switch

  • Built-in high capacity Li-ion battery for 75 minutes scan function

  • Optional trolley with full flexible 4.5" castors with brakes for easy transportation



Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE S6
Item number 1-191903-0202-005
Ultrasound System
Short description Color doppler advanced level hcu with 15" monitor and 2 transducer sockets. 64 phys. channels, 7 imaging levels
Product Image SonoScape S6
Multi Beam Processing Technology
Physical Channels 64
Imaging Levels 7
Hardware
Monitor 15" HD LED Wide
Resolution in px 1,366x768
Flexibility --
Control Panel
Flexibility --
Bottom side Holders for Probe Cables (left/right) --
Slip-on stand-up Cable Holder for Probe Cables ○ (at trolley)
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages) Keyboard on panel
Extendable alphanumeric Keyboard at the Control Panel front side --
Probe sockets 2 (with optional extender up to 4)
Transducers
Number of compatible Probes 14
HD Probes --
Frequency Range 2-16 MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements) --
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements) --
Adoption of Latest Generation Convex Probes (3C-A) --
Adoption of Single-Crystal Convex Probes --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1) --
Adoption of Laparoscopy Probes --
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes
Adoption of CW Pencil Probes
Adoption of PW Pencil Probes --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch
Integrated Gel Warmer
Handles ○ (trolley with front handle and rear handle for easy transportation)
Battery built-in battery for 1.3h scan time
Printer link-up to B/W thermal printer or color video printer
Castors ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers)
Storage
Storage Media
HDD Storage 500 GB
SSD Storage --
CD/DVD-RW --
Blu-Ray-RW --
Image Storage Capacity 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000
Cine Playback Time >50s
Frame Rate in B Mode (2D) 866 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 115 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH) --
Lateral Gain Compensation (LGC) --
Spatial Compound Imaging (SCI) --
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan --
2D Panorama Imaging
Color Flow Panoramic Imaging --
Color 3D --
Real Time 3D/4D
Inversion 4D --
S-Live --
S-Depth --
Freehand 3D Imaging
3D µ-scan --
Auto Face --
3D Measurement --
Pelvic Floor Ultrasound --
MagiCut/SmartCut --
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF)
Contrast Imaging --
Stress Echo
Cardio Vascular Kit TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS --
OB/GYN Kit --
OB/GYN Kit Premium PLUS --
Needle Visualization Enhancement (VIS-Needle) --
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), PW, CW, 3D, 4D, Triplex
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Gentoo Linux
Interfaces
Data 2 USB Ports
Network LAN, Print
Video VGA OUT, Video OUT (Composite Video), S-Video OUT
Audio Audio
Power LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats CIN, AVI, WMV
Supported Image Formats JPG, BMP, TIF, PPM
Supported Document Formats PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 230x350x168/440
Weight [kg] 7.9
Inspection and Maintenance
MPD Class II A
Preventive Maintenance every 6 month
MTK every 12 month
STK every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years
Warranty Extension optional up to 5 years
Spare Part Availability >8 years
Legend
   yes/included
   optional
--  not available

Technical Specification SonoScape S6
  View Technical Specification SonoScape S6   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.



Brochures

Product Brochure SonoScape S6
  View brochure SonoScape S6   View and print brochure in fullscreen
  Download brochure SonoScape S6   Download brochure as PDF
Product Overview SonoScape Ultrasound Devices
  View brochure SonoScape Ultrasound Devices   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Devices   Download brochure as PDF
Product Overview SonoScape Ultrasound Probes
  View brochure SonoScape Ultrasound Probes   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Probes   Download brochure as PDF

Certificates

Download   Download   Download
