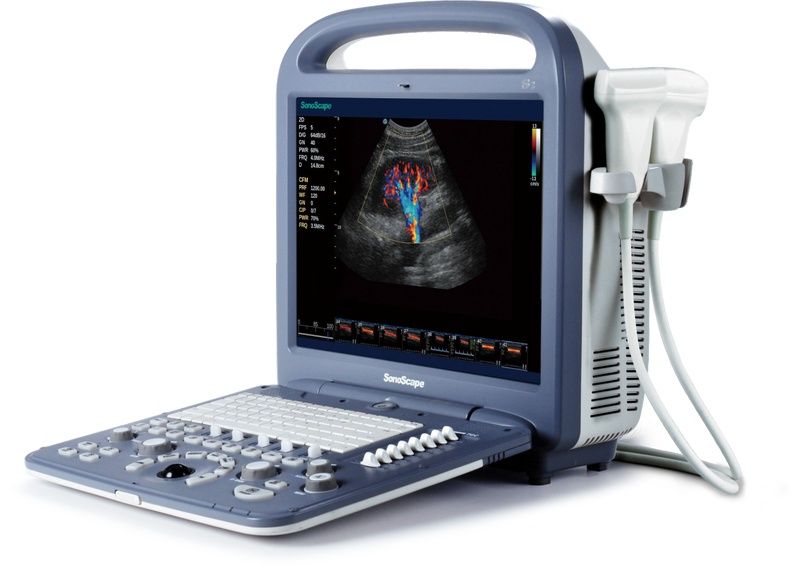

SonoScape S2

Availability: In stock
Delivery Time : 2-3 Tage
Item Number
1-191903-0202-001
Smart Color System Color doppler entry level hcu with 15" monitor and 2 transducer sockets. 64 phys. channels, 5 imaging levels.
Email to a Friend

Smart Color System

SonoScape S2 is SonoScape's smart portable color Doppler system. Featuring SonoScape's new software platform, the S2 brings more value to sonographers than any other in its class. S2 is catered to the needs of doctors: intelligent patient file management system, convenient user-definable settings, and professional diagnostic applications. Working with SonoScape S2, you can have comfort, accuracy and confidence.

Features

  • 15-inch high definition LCD monitor

  • Two pinless transducer sockets

  • 13 compatible probes: Linear, Convex, Micro-convex, Endocavity, Phased Array, Volumetric 4D

  • Premium application technology: μ-scan speckle reduction, compound imaging, Tissue Harmonic Imaging (THI)
  • Wide range of applications including cardiovascular, radiology, OB/GYN, urology, small parts, musculoskeletal, abdomen etc.

  • Frequently used presets can be defined fully flexible

  • ECG functionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Access for foot switch

  • Built-in high capacity Li-ion battery for 60 minutes scan function

  • Optional trolley with full flexible 4.5" castors with brakes for easy transportation



Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE S2
Item number 1-191903-0202-001
Ultrasound System
Short description Color doppler entry level hcu with 15" monitor and 2 transducer sockets. 64 phys. channels, 5 imaging levels
Product Image SonoScape S2
Multi Beam Processing Technology
Physical Channels 64
Imaging Levels 5
Hardware
Monitor 15" HD LED Wide
Resolution in px 1,366x768
Flexibility --
Control Panel
Flexibility --
Bottom side Holders for Probe Cables (left/right) --
Slip-on stand-up Cable Holder for Probe Cables ○ (at trolley)
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages) Keyboard on panel
Extendable alphanumeric Keyboard at the Control Panel front side --
Probe sockets 2 (with optional extender up to 4)
Transducers
Number of compatible Probes 13
HD Probes --
Frequency Range 2-16 MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements) --
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements) --
Adoption of Latest Generation Convex Probes (3C-A) --
Adoption of Single-Crystal Convex Probes --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes --
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1) --
Adoption of Laparoscopy Probes --
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes --
Adoption of CW Pencil Probes --
Adoption of PW Pencil Probes --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch
Integrated Gel Warmer
Handles ○ (trolley with front handle and rear handle for easy transportation)
Battery built-in battery for 1h scan time
Printer link-up to B/W thermal printer or color video printer
Castors ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers)
Storage
Storage Media
HDD Storage 320 GB, optional 500 GB
SSD Storage --
CD/DVD-RW --
Blu-Ray-RW --
Image Storage Capacity 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000
Cine Playback Time >100s
Frame Rate in B Mode (2D) 866 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 15 general measurements, 100 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH) --
Lateral Gain Compensation (LGC) --
Spatial Compound Imaging (SCI) --
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan --
2D Panorama Imaging
Color Flow Panoramic Imaging --
Color 3D --
Real Time 3D/4D
Inversion 4D --
S-Live --
S-Depth --
Freehand 3D Imaging
3D µ-scan --
Auto Face --
3D Measurement --
Pelvic Floor Ultrasound --
MagiCut/SmartCut --
Auto-IMT Measurement (Intima Media Thickness) --
High Pulse Repetition Frequency (HPRF) --
Contrast Imaging --
Stress Echo --
Cardio Vascular Kit TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS --
OB/GYN Kit --
OB/GYN Kit Premium PLUS --
Needle Visualization Enhancement (VIS-Needle) --
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), PW, CW, 3D, 4D (optional), Triplex
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Gentoo Linux
Interfaces
Data 2 USB Ports
Network LAN, Print
Video VGA OUT, Video OUT (Composite Video), S-Video OUT
Audio Audio
Power LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats MP4, AVI
Supported Image Formats JPG, BMP, TIF
Supported Document Formats PDF
Clinical Application
General and Internal Medicine
Cardio Vascular --
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 230x350x168/440
Weight [kg] 13
Inspection and Maintenance
MPD Class II A
Preventive Maintenance every 6 month
MTK every 12 month
STK every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years
Warranty Extension optional up to 5 years
Spare Part Availability >8 years
Legend
   yes/included
   optional
--  not available

Technical Specification SonoScape S2
  View Technical Specification SonoScape S2   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.
