SonoScape S22

Availability: In stock
Delivery Time : 5-7 working days
Item Number
1-191903-0204-007
Call for Price

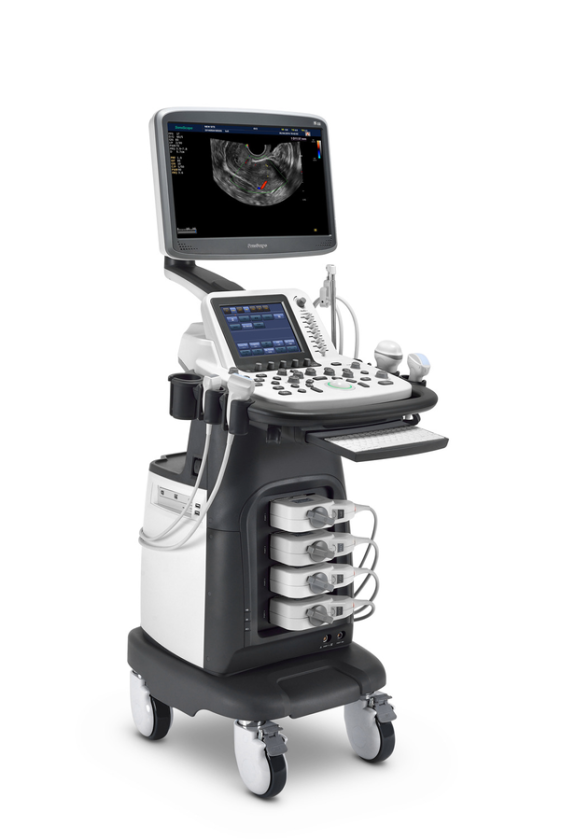

Intelligent Design and Efficiency Color doppler trolley system with 19" monitor and 4 transducer sockets. 64 phys. channels, compatible to HD probes, flexible monitor arm. The elegant S22 is specially designed for all modalities, including radiology, cardiovascular, OB/GYN, vascular, MSK, small parts, and more.
Email to a Friend

Intelligent Design and Efficiency

The S22 brings advanced ergonomics, technology, and a full suite of applications into a price-range that won't break your budget. The elegant S22 is specially designed for all modalities, including radiology, cardiovascular, OB/GYN, vascular, MSK, small parts, and more. This system is featured with a smart touchscreen, high-end imaging technologies, and an efficient workflow. Thanks to our innovative technologies, such as Multi-beam processing and μ-scan speckle reduction, clinicians will be confident for even toughest patients.

Features


  • 19-inch high definition LCD monitor with large imaging area

  • Ergonomic design with 8-inch touch screen

  • Appealing keyboard layout with backlite silicone keys and conventional controllers are all habits justice

  • Four transducer sockets and one pencil socket

  • A wide selection of transducers: Convex, Phased, Linear, Transvaginal, Transrectal, Bi-plane, TEE, Intraoperative and Volumetric probe (a total of 22 compatible probes)

  • High density transducers with frequencies ranging from 1.9 to 16 MHz

  • 200° transvaginal imaging with temperature-detection technology

  • Integrated with advanced technologies, such as μ-scan speckle reduction, compound imaging, IMT, B-Steer, automatic flow volume analysis, and real-time 4D imaging

  • ECG functionality

  • Shared Services full suite of applications, including: Cardiology, Radiology, OB/GYN, Urology, Vascular, Small Parts, MSK, and more

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Built-in batteries for 2.5 h support

  • Foot Switch as accessory

  • Optional integrated gel warmer

  • 4.5-inch locking castors fully flexible for easy transportation


Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE S22 SONOSCAPE S22 HOSPITAL EDITION
Item number 1-191903-0204-007 1-191903-0204-107
Ultrasound System
Short description Color doppler trolley system with 18.5" monitor and 4 transducer sockets. 64 phys. channels, compatible to HD probes, flexible monitor arm.  Color doppler trolley system with 18.5" monitor and 4 transducer sockets. 64 phys. channels, compatible to HD probes, flexible monitor arm. Several exclusive features
Product Image SonoScape S22 SonoScape S22 Hospital Edition
Multi Beam Processing Technology
Physical Channels 64 64
Imaging Levels 8,5 8,5
Hardware
Monitor 18.5" HD LCD Wide 18.5" HD LCD Wide
Resolution in px 1,366x768 1,366x768
Flexibility fully flexible: tiltable (longitudinal), rotatable (horizontal), height adjustable (vertikal) fully flexible: tiltable (longitudinal), rotatable (horizontal), height adjustable (vertikal)
Control Panel
Flexibility -- --
Bottom side Holders for Probe Cables (left/right)
Slip-on stand-up Cable Holder for Probe Cables
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel 8" 8"
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages)
Extendable alphanumeric Keyboard at the Control Panel front side
Probe sockets 6 (4 active ports, 1 parking position, 1 pencil) 6 (4 active ports, 1 parking position, 1 pencil)
Transducers
Number of compatible Probes 22 24
HD Probes yes, 256 elements yes, 256 elements
Frequency Range 1-16 MHz 1-16 MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements)
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements)
Adoption of Latest Generation Convex Probes (3C-A)
Adoption of Single-Crystal Convex Probes -- --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes (3P1, 5P2, 8P1) -- --
Adoption of Laparoscopy Probes
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes
Adoption of CW Pencil Probes
Adoption of PW Pencil Probes
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch ECG access, access for foot switch
Integrated Gel Warmer -- --
Handles front handle for easy transportation front handle handle for easy transportation
Battery built-in battery for 2,5h scan time built-in battery for 2,5h scan time
Printer Shelf for B/W Thermal Printer or Color Video Printer Shelf for B/W Thermal Printer or Color Video Printer
Castors 4 fully flexible 4.5" castors with lockers 4 fully flexible 4.5" castors with lockers
Storage
Storage Media
HDD Storage 500 GB 500 GB, optional 1 TB
SSD Storage -- 500 GB, optional 1 TB
CD/DVD-RW
Blu-Ray-RW --
Image Storage Capacity 200,000 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000 1,000
Cine Playback Time adjustable adjustable
Frame Rate in B Mode (2D) 935 fps 935 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 105 application-specific measurements 16 general measurements, 115 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC)
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan
2D Panorama Imaging
Color Flow Panoramic Imaging
Color 3D -- --
Real Time 3D/4D
Inversion 4D -- --
S-Live
S-Depth
Freehand 3D Imaging
3D µ-scan -- --
Auto Face -- --
3D Measurement -- --
Pelvic Floor Ultrasound -- --
MagiCut/SmartCut
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF)
Contrast Imaging
Stress Echo
Cardio Vascular Kit TDI/Color M/ECG/Steer M TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS -- --
OB/GYN Kit Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut
OB/GYN Kit Premium PLUS -- --
Needle Visualization Enhancement (VIS-Needle)
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic Imaging, Trapezoidal Imaging B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic Imaging, Trapezoidal Imaging
Integrated Patient Data Management System
Operating System Gentoo Linux Gentoo Linux
Interfaces
Data 5 USBPorts 5 USB Ports
Network LAN, Print, Wi-Fi (optional) LAN, Print, Wi-Fi
Video VGA OUT, Video OUT (Composite Video), S-Video OUT, DVI (optional) VGA OUT, Video OUT (Composite Video), S-Video OUT, DVI
Audio Audio Audio
Power LINE IN, electrical bonding LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R) Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats AVI, WMV AVI, WMV
Supported Image Formats JPG, BMP, TIF JPG, BMP, TIF
Supported Document Formats PDF PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2 complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist) recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 520x685x1,311 520x685x1,311
Weight [kg] 56 56
Inspection and Maintenance
MPD Class II A II A
Preventive Maintenance every 6 month every 6 month
MTK every 12 month every 12 month
STK every 12 month every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years 2 years
Warranty Extension optional up to 5 years optional up to 5 years
Spare Part Availability >10 years >10 years
Legend
yes/included
optional
-- not available

Technical Specification SonoScape S22
  View Technical Specification SonoScape S22   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.



Brochures

Product Brochure SonoScape S22
  View brochure SonoScape S22   View and print brochure in fullscreen
  Download brochure SonoScape S22   Download brochure as PDF
Product Overview SonoScape Ultrasound Devices
  View brochure SonoScape Ultrasound Devices   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Devices   Download brochure as PDF
Product Overview SonoScape Ultrasound Probes
  View brochure SonoScape Ultrasound Probes   View and print brochure in fullscreen
  Download brochure SonoScape Ultrasound Probes   Download brochure as PDF
