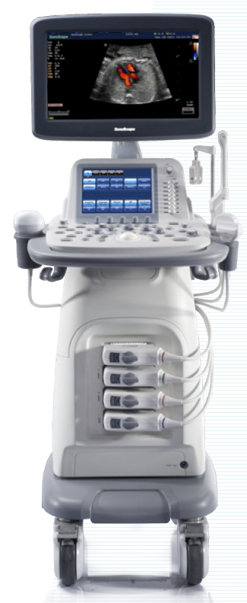

SonoScape S20

Availability: In stock
Delivery Time : 2-3 Tage
Item Number
1-191903-0204-006
Intelligent Design and Efficiency Color doppler trolley system with 17" monitor and 4 transducer sockets. 64 phys. channels, 7 imaging levels. The elegant S20 is specially designed for all modalities, including radiology, cardiovascular, OB/GYN, vascular, MSK, small parts, and more.
reddot award
Email to a Friend

Intelligent Design and Efficiency

The S20 brings advanced ergonomics, technology, and a full suite of applications into a price-range that won't break your budget. The elegant S20 is specially designed for all modalities, including radiology, cardiovascular, OB/GYN, vascular, MSK, small parts, and more. This system is featured with a smart touchscreen, high-end imaging technologies, and an efficient workflow. Thanks to our innovative technologies, such as Multi-beam processing and μ-scan speckle reduction, clinicians will be confident for even toughest patients.

Reddot Design Award Winner 2011

reddot award The S20 was awarded 2011 with the reddot design award. SonoScape S20 was elected due to ist ergonomic assembly of the Panel and Monitors and the robust and solid appearance while having an outstanding design at the same time: "The S20 is an ultrasound diagnostic system for applications in radiology, cardiology, obstetrics and gynaecology. It features advanced technologies, such as multi-beam processing and micro-scans, which guarantee reliable diagnoses. All images are displayed on a 17’’ high-resolution monitor with a large imaging area that is mounted on a pivoting arm for optimal positioning. This relaxes the user’s eyes, arms and shoulders when working with the device on a daily basis. Another well-thought-out feature is the 10.4’’ touch panel which, thanks to its convenient size, allows for easy handling. The system has a robust and solid appearance and is also suitably equipped, since positioned on four castors, for flexible everyday use in medical practices and clinics." Learn more

Features

We're sorry, an error has occurred while generating this content.

Technical Specification (incl. Feature Overview)

PRODUKT NAME SONOSCAPE S20
Item number 1-191903-0204-006
Ultrasound System
Short description Color doppler trolley system with 17" monitor and 4 transducer sockets. 64 phys. channels, 7 imaging levels
Product Image SonoScape S20
Multi Beam Processing Technology
Physical Channels 64
Imaging Levels 7
Hardware
Monitor 17" HD LCD Wide
Resolution in px 1,440x900
Flexibility tiltable (longitudinal), rotatable (horizontal), height adjustable (vertikal)
Control Panel
Flexibility --
Bottom side Holders for Probe Cables (left/right)
Slip-on stand-up Cable Holder for Probe Cables
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel 10.4"
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages)
Extendable alphanumeric Keyboard at the Control Panel front side --
Probe sockets 5 (4 standard sockets, 1 pencil probe)
Transducers
Number of compatible Probes 25
HD Probes yes, 256 elements
Frequency Range 2-16  MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements)
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements)
Adoption of Latest Generation Convex Probes (3C-A) --
Adoption of Single-Crystal Convex Probes --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1) --
Adoption of Laparoscopy Probes
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes
Adoption of CW Pencil Probes
Adoption of PW Pencil Probes --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch
Integrated Gel Warmer --
Handles front handle for easy transportation
Battery --
Printer link-up to B/W thermal printer or color video printer
Castors 4 fully flexible 4.5" castors with 4 lockers
Storage
Storage Media
HDD Storage 500 GB
SSD Storage --
CD/DVD-RW
Blu-Ray-RW --
Image Storage Capacity 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000
Cine Playback Time >60s
Frame Rate in B Mode (2D) 920 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 105 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC) --
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan
2D Panorama Imaging
Color Flow Panoramic Imaging
Color 3D --
Real Time 3D/4D
Inversion 4D --
S-Live --
S-Depth --
Freehand 3D Imaging
3D µ-scan --
Auto Face --
3D Measurement --
Pelvic Floor Ultrasound --
MagiCut/SmartCut
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF)
Contrast Imaging --
Stress Echo
Cardio Vascular Kit TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS --
OB/GYN Kit  Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut
OB/GYN Kit Premium PLUS --
Needle Visualization Enhancement (VIS-Needle) --
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Gentoo Linux
Interfaces
Data 4 USB Ports
Network LAN, Print
Video VGA OUT, Video OUT  (Composite Video), S-Video OUT
Audio Audio
Power LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats CIN, AVI, WMV
Supported Image Formats JPG, BMP, TIF, PPM
Supported Document Formats PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 520x685x1,311
Weight [kg] 56
Inspection and Maintenance
MPD Class II A
Preventive Maintenance every 6 month
MTK every 12 month
STK every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years
Warranty Extension optional up to 5 years
Spare Part Availability >8 years
Legend
   yes/included
   optional
--  not available

Technical Specification SonoScape S20
  View Technical Specification SonoScape S20   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.
