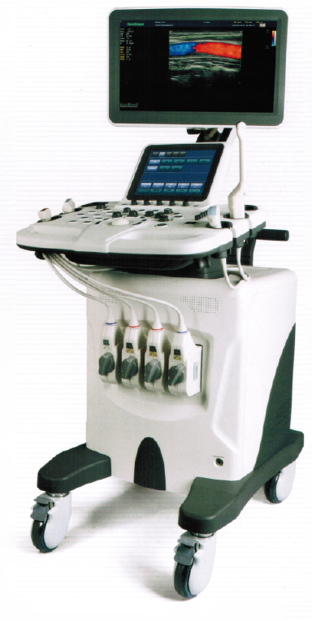

Colour Doppler Ultrasound System Color doppler trolley system with 18.5" monitor and 4 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes, flexible monitor arm, height adjustable control panel. The S30 is built as a complete full-body ultrasound machine that has more features than any other in its class, and even can satisfy the most demanding clinical requirements, significantly expanding the value of ultrasound.
Colour Doppler Ultrasound System Color doppler trolley system with 18.5" monitor and 4 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes, flexible monitor arm, height adjustable control panel. The S30 is built as a complete full-body ultrasound machine that has more features than any other in its class, and even can satisfy the most demanding clinical requirements, significantly expanding the value of ultrasound.
Delivery time:
2-3 Tage

Colour Doppler Ultrasound System

Based on the latest powerful platform, the S30 combines SonoScape's core imaging technologies and gorgeous ergonomic design. The S30 is built as a complete full-body ultrasound machine that has more features than any other in its class, and even can satisfy the most demanding clinical requirements, significantly expanding the value of ultrasound.

Features


  • 19-inch high definition LCD monitor with wide viewing angle

  • 10-inch touch screen

  • Height adjustable control panel

  • Four transducer sockets and additional one socket for CW probe

  • A broad range of transducers: Linear, Convex, Micro-convex, Endocavity, Phased, Intraoperative, TEE, Bi-plane, Pencil, Volumetric and Endocavity 4D probe

  • Speckle reduction and compound imaging technologies

  • Excellent application technology: 4D, real-time panoramic, triplex, IMT, color M-Mode, steer M-Mode, TEI Index, TDI and stress echo

  • ECG Funktionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report



Technical Specification (incl. Feature Overview)

PRODUCT NAME SONOSCAPE S30 SONOSCAPE S30 HOSPITAL EDITION
Item number 1-191903-0204-011 1-191903-0204-111
Ultrasound System
Short description Color doppler trolley system with 18.5" monitor and 4 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes, flexible monitor arm, height adjustable control panel. Color doppler trolley system with 18.5" monitor and 4 transducer sockets. 64 phys. channels, 8.5 imaging levels, compatible to HD probes, flexible monitor arm, height adjustable control panel. Several exclusive features
Product Image SonoScape S30 SonoScape S30 Hospital Edition
Multi Beam Processing Technology
Physical Channels 64 64
Imaging Levels 8,5 8,5
Hardware
Monitor 19" HD LED Wide 19" HD LED Wide
Resolution in px 1,366x768 1,366x768
Flexibility fully flexible: tiltable (longitudinal), rotatable (horizontal), height adjustable (vertikal) fully flexible: tiltable (longitudinal), rotatable (horizontal), height adjustable (vertikal)
Control Panel
Flexibility extendable (longitudinal), rotatable (horizontal), electronically height adjustable (vertikal) extendable (longitudinal), rotatable (horizontal), electronically height adjustable (vertikal)
Bottom side Holders for Probe Cables (left/right)
Slip-on stand-up Cable Holder for Probe Cables -- --
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel 10" 10"
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages)
Extendable alphanumeric Keyboard at the Control Panel front side
Probe sockets 5 (4 standard ports, 1 pencil) 5 (4 standard ports, 1 pencil)
Transducers
Number of compatible Probes 27 27
HD Probes yes, 256 elements yes, 256 elements
Frequency Range 1-16 MHz 1-16 MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements)
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements)
Adoption of Latest Generation Convex Probes (3C-A)
Adoption of Single-Crystal Convex Probes -- --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes (3P1, 5P2, 8P1) -- --
Adoption of Laparoscopy Probes
Adoption of TEE Probes
Adopion of Pediatric TEE Probes
Socket for Pencil Probes
Adoption of CW Pencil Probes
Adoption of PW Pencil Probes
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access, access for foot switch ECG access, access for foot switch
Integrated Gel Warmer -- --
Handles front handle and rear handle for easy transportation front handle and rear handle for easy transportation
Battery --
Printer Shelf for B/W Thermal Printer or Color Video Printer Shelf for B/W Thermal Printer or Color Video Printer
Castors 4 fully flexible 4.5" castors with lockers 4 fully flexible 4.5" castors with lockers
Storage
Storage Media
HDD Storage 500 GB 500 GB, optional 1 TB
SSD Storage -- 500 GB, optional 1 TB
CD/DVD-RW
Blu-Ray-RW --
Image Storage Capacity 200,000 200,000
Cine Speicher
Cine Loop (images in B Mode) 500 500
Cine Playback Time >50s >50s
Frame Rate in B Mode (2D) 750 fps 750 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 105 application-specific measurements 16 general measurements, 115 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC) -- --
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan
2D Panorama Imaging
Color Flow Panoramic Imaging
Color 3D -- --
Real Time 3D/4D
Inversion 4D -- --
S-Live
S-Depth
Freehand 3D Imaging
3D µ-scan -- --
Auto Face -- --
3D Measurement -- --
Pelvic Floor Ultrasound -- --
MagiCut/SmartCut -- --
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF)
Contrast Imaging
Stress Echo
Cardio Vascular Kit TDI/Color M/ECG/Steer M TDI/Color M/ECG/Steer M
Cardio Vascular Kit Premium PLUS -- --
OB/GYN Kit Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut Multi Slice View/Oblique View/3D Rendering (S-Live, S-Depth)/MagiCut/SmartCut
OB/GYN Kit Premium PLUS -- --
Needle Visualization Enhancement (VIS-Needle)
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), DPDI (DirPDI, DDPI), PW, CW, 3D, 4D, Triplex, TEI
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic Imaging, Trapezoidal Imaging B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic Imaging, Trapezoidal Imaging
Integrated Patient Data Management System
Operating System Gentoo Linux Gentoo Linux
Interfaces
Data 5 USBPorts 5 USB Ports
Network LAN, Print, Wi-Fi (optional) LAN, Print, Wi-Fi
Video VGA OUT, Video OUT (Composite Video), 2x S-Video OUT, DVI (optional) VGA OUT, Video OUT (Composite Video), 2x S-Video OUT, DVI
Audio Audio Audio
Power LINE IN, electrical bonding LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R) Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats MP4, AVI MP4, AVI
Supported Image Formats JPG, BMP, TIF JPG, BMP, TIF
Supported Document Formats PDF PDF
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2 complies with DEGUM Class 2
OEGUM applied for OEGUM whitelist applied for OEGUM whitelist
Dimension and Weight
WxDxH [mm] 540x840x1,475 540x840x1,475
Weight [kg] 90 90
Inspection and Maintenance
MPD Class II A II A
Preventive Maintenance every 6 month every 6 month
MTK every 12 month every 12 month
STK every 12 month every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years 2 years
Warranty Extension optional up to 5 years optional up to 5 years
Spare Part Availability >10 years >10 years
Legend
yes/included
optional
-- not available

Technical Specification SonoScape S30
  View Technical Specification SonoScape S30   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.
