Beyound your expectations Color doppler entry level trolley system with 15" monitor and 4 transducer sockets. 64 phys. channels, 5 imaging levels.
Beyound your expectations Color doppler entry level trolley system with 15" monitor and 4 transducer sockets. 64 phys. channels, 5 imaging levels.
Delivery time:
2-3 Tage

Beyound your expectations

SonoScape's trolley color Doppler system S11 redefines price and performance with practical design. The S11 will go beyond your expectations but not your budget. As an easy-to-use ultrasound system, the S11 is integrated with a new software platform especially optimized for smooth workflow and convenient operation. The system will speed up the exam process and make file management much easier.

Features


  • 15-inch high definition LCD monitor with articulating arm

  • Compact and agile trolley design

  • Three active transducer sockets available for a wide range of applications

  • Five transducer sockets and additional one socket for CW probe

  • Duplex, Color Doppler, DPI, PW Doppler, tissue harmonic imaging, μ-scan speckle reduction imaging, compound imaging, trapezoidal imaging

  • 13 compatible probes: Linear, Convex, Micro-convex, Endocavity, Phased Array, Intraoperative and Volumetric probe

  • Customized settings based on your own working style

  • ECG functionality

  • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB2.0, HDD, DVD, PDF report

  • Optional foot switch

  • Full flexible 4,5" castors with 2 brakes for easy transportation



Technical Specification (incl. Feature Overview)

PRODUKT NAME SONOSCAPE S11
Item number 1-191903-0204-001
Ultrasound System
Short description Color doppler entry level trolley system with 15" monitor and 4 transducer sockets. 64 phys. channels, 5 imaging levels

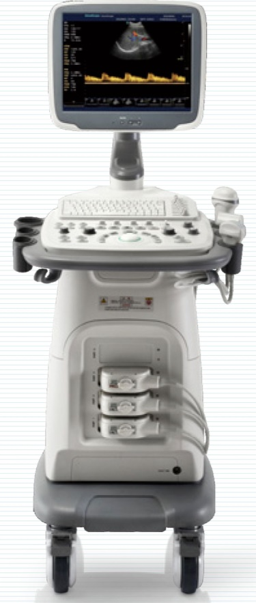

Product Image SonoScape S11
Multi Beam Processing Technology
Physical Channels 64
Imaging Levels 5
Hardware
Monitor 15" HD LCD Wide
Resolution in px 1,366x768
Flexibility tiltable (longitudinal), rotatable (horizontal)
Control Panel
Flexibility --
Bottom side Holders for Probe Cables (left/right)
Slip-on stand-up Cable Holder for Probe Cables --
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages) --
Extendable alphanumeric Keyboard at the Control Panel front side --
Probe sockets 4 standard sockets
Transducers
Number of compatible Probes 13
HD Probes --
Frequency Range 2-16  MHz
Adoption of 4D Probes
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements) --
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements) --
Adoption of Latest Generation Convex Probes (3C-A) --
Adoption of Single-Crystal Convex Probes --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes --
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1) --
Adoption of Laparoscopy Probes --
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes --
Adoption of CW Pencil Probes --
Adoption of PW Pencil Probes --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets ECG access
Integrated Gel Warmer --
Handles front handle for easy transportation
Battery optional, 2h scan time
Printer link-up to B/W thermal printer or color video printer
Castors 4 fully flexible 4.5" castors with 2 lockers
Storage
Storage Media
HDD Storage 500 GB
SSD Storage --
CD/DVD-RW
Blu-Ray-RW --
Image Storage Capacity 200,000
Cine Speicher
Cine Loop (images in B Mode) 1,000
Cine Playback Time >100s
Frame Rate in B Mode (2D) 910 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 16 general measurements, 90 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH) --
Lateral Gain Compensation (LGC) --
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto)
MicroScan
2D Panorama Imaging
Color Flow Panoramic Imaging --
Color 3D --
Real Time 3D/4D
Inversion 4D --
S-Live --
S-Depth --
Freehand 3D Imaging
3D µ-scan --
Auto Face --
3D Measurement --
Pelvic Floor Ultrasound --
MagiCut/SmartCut
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF) --
Contrast Imaging --
Stress Echo --
Cardio Vascular Kit --
Cardio Vascular Kit Premium PLUS --
OB/GYN Kit --
OB/GYN Kit Premium PLUS --
Needle Visualization Enhancement (VIS-Needle) --
Basic Imaging Modes B-Mode (2D Mode: 2B & 4B), M-Mode, THI, CFM, PDI (DPI), PW, CW, 3D, 4D, Triplex
Display Formats B, Dual B, Quad B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Gentoo Linux
Interfaces
Data 4 USB Ports
Network LAN, Print
Video VGA OUT, Video OUT  (Composite Video), S-Video OUT
Audio Audio
Power LINE IN, electrical bonding
DICOM 3.0 Support Complete DICOM Suite (Store, C-Store, Worklist, MMPS, Print, SR, Q/R)
Export Formats
Supported Video Formats MP4, AVI
Supported Image Formats JPG, BMP, TIF
Supported Document Formats PDF
Clinical Application
General and Internal Medicine
Cardio Vascular --
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 559x720x1,380
Weight [kg] 60
Inspection and Maintenance
MPD Class II A
Preventive Maintenance every 6 month
MTK every 12 month
STK every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 2 years
Warranty Extension optional up to 5 years
Spare Part Availability >8 years
Legend
   yes/included
   optional
--  not available

Technical Specification SonoScape S11
  View Technical Specification SonoScape S11   View and print Technical Specification in fullscreen


Further Information

Detailed specification on request.
