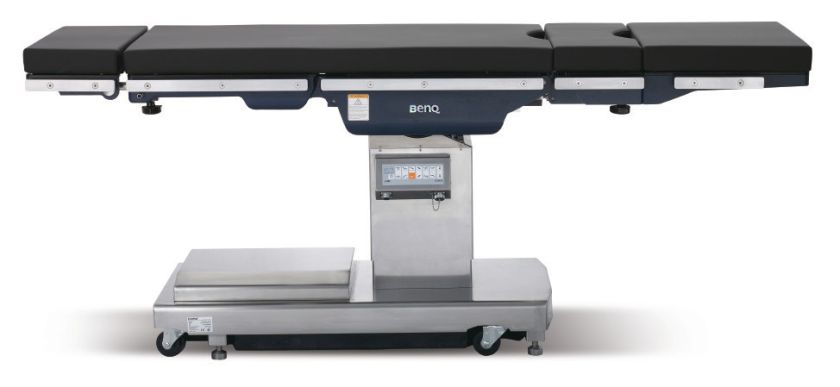

Poseidon Q100

Availability: In stock
Item Number
1-021417-0812-500
€8,000.00 €9,520.00
Electro-hydraulic Universal Operating Tables Electromotive hydraulic universal surgical tables (500 x 2,000 mm) with table height adjustable from 685-1,135 mm and longitudinal sliding of 350 mm.
Email to a Friend

Universal Operating Table

The Poseidon Q100 is designed for operations in a full range of surgeries and in connection with special accessories for cardiology, neurosurgery, proctology, urology, obstetrics and gynecology and ophthalmology. The table’s design has been optimized for facilitating superior patient positioning and provides more efficient and comfortable support to the patient during surgical procedures.

Outstanding Value & Versatility

  • The tabletop longitudinal slide for 350mm provides a completed coverage for C-Arm and X-ray and the height adjustment range is from 685mm to 1135mm.
  • The powered leg plate can be lowered up and down easily and it makes the surgical team’s work more efficient.
  • The detachable split upper and lower leg plate can create more additional positioning possibilities to meet the needs of surgical practices.
  • The combination of leg plates and knee crutches offers simple and flexible patient positioning for gynecological, urological, rectal and MIS procedures.


Applications



Technical Specification

Model
Poseidon Q100
Tabletop length (w/ head rest) [mm]
2,000
Tabletop width (w/o side rails) [mm]
500
Tabletop height (up/down, w/o pad) [mm]
685-1,135
Head rest (up/down)
60° / 90°
Back plate (up/down)
80° / 40°
Leg plates (up/down)
20° / 100°
Trendelenburg/Reverse Trendelenburg
30° / 30°
Lateral tilt (left/right)
20° / 20°
Flex/Reflex
220° / 100°
Tabletop longitudinal sliding [mm]
350
Kidney Bridge Elevation (optional) [mm]
121


Further Information

Detailed specification on request.
