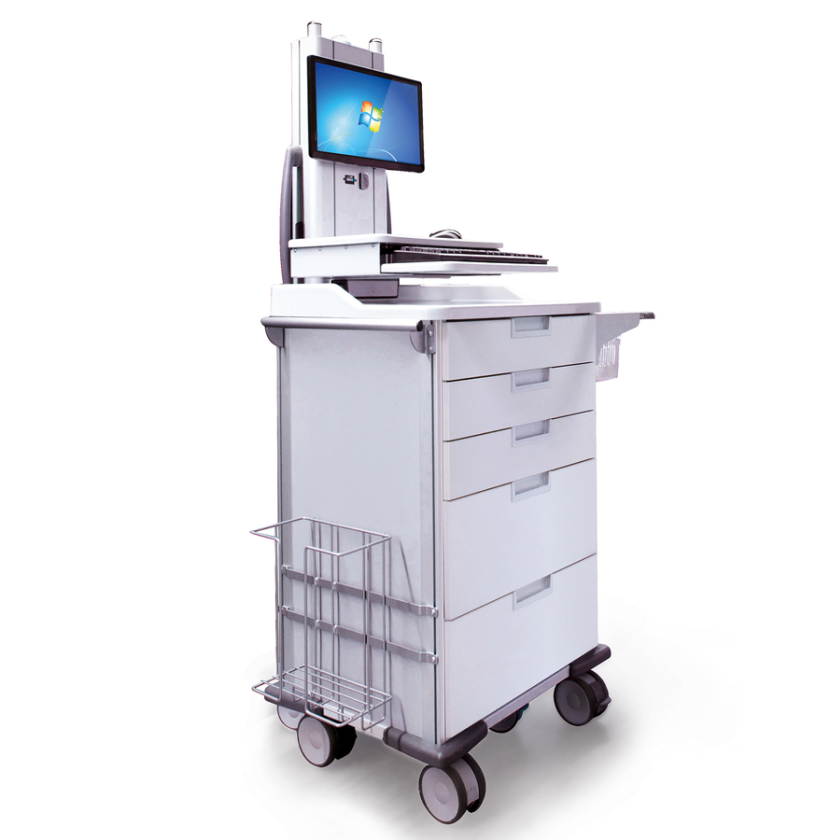

Modular Computer Cart XCSIT511-PW011

Availability: In stock
Delivery Time : By individual agreement
Item Number
1-021220-0545-111
€4,671.00 €5,558.49
Computer Cart XCSIT511 The fully built system included monitor, operation system and battery kit in one smartly designed configuration which allows user plug-and-play and avoids from fussing with cables, setup or multiple maintenances.
Email to a Friend


Modular Computer Cart XCSIT511-PW011

The new “Modular Computer Cart” provides caregivers with everything they need in a daily routine. The smart all-in-one computer cart can be combined with different ISO-nursing carts by various intents and purposes like frontline, emergency, dressing, managing medications, etc. The simple coupling system brings two trolleys become one within a few seconds so to give a smooth working environment for caregivers to access to patients’ medical records directly during any work.



Combination

XCSIT511-PW011 Combination


ISO-Nursing Cart


Features (ISO-Nursing Cart)

Features - ISO-Nursing Cart


Technical Specification (ISO-Nursing Cart)

Product Name ISO-Nursing Cart XCSPW011
Article number 1-021220-0520-011
Category ISO-Nursing Cart
Measurements and Weight
Whole Body
External dimensions (W x D x H) [mm] 715 x 570 x 1047
Weight, body [kg] Depending on configuration
Worktop
Height [mm] 998
Telescopic runners
Maximum load capacity [kg] 45
ISO Module or basket
Dimensions (W x D) [mm] ⁼¹² ○ 600 x 400
(H) [mm] ○ 50 ⁽¹⁾
  ○ 100 ⁽²⁾
  ○ 100 (with 50 mm extra space) ⁽³⁾
  ○ 200 ⁽⁴⁾
Tray for clear medication organizer
Dimensions (W x D) [mm] ○ 600 x 400
Clear medication organizer tray S ⁶ (D x W x H) [mm] ○ 400 x 92 x 82
Clear medication organizer tray M ⁴ (D x W x H) [mm] ○ 400 x 132 x 100
Clear medication organizer tray L ³ (Dx W x H) [mm] ○ 400 x 186 x 82
Tray for opaque medication organizer
Dimensions (W x D) [mm] ○ 600 x 400
Opaque medication organizer SL ⁶ (D x W x H) [mm] ○ 89 x 384 x 55
Opaque medication organizer LL ⁴ (D x W x H) [mm] ○ 131 x 384 x 55
Opaque medication organizer SH ⁶ (Dx W x H) [mm] ○ 89 x 384 x 131
Opaque medication organizer LH ⁴ (Dx W x H) [mm] ○ 131 x 384 x 131
Tray for covered medication organizer
Dimensions (W x D) [mm] ○ 600 x 400
Covered medication organizer ⁸ (D x W x H) [mm] ○ 67 x 385 x 41
Castors
Diameter [mm] 4 double swivel castors (Ø 125 mm), which one brake and one with directional lock
Materials
Bottom Grey coated steel
Bumpers PU foam
Corner profiles Anodised aluminum
Panels Core with HPL finish
Worktop Kydex - chemical resistant, anti-bacterial
Handle Aluminium
ISO Module ABS plastic or transparent PC plastic
ISO basket ABS plastic or transparent PC plastic
Equipment
Components
ISO Module or basket in heights of 50 mm
ISO Module or basket in heights of 100 mm
ISO Module or basket in heights of 100 mm (with 50 mm extra space)
ISO Module or basket in heights of 200 mm
Clear medication organizer S / M / L
Opaque medication organizer SL / LL / SH / LH
covered medication organizer
Telescopic runners
Soft-closing function
Lock
Lock the carts and monitoring the administration of medication
A keypad with PIN code to grant access via badge, password etc
Index
● Standard
○ Optional
Sum of (x) should equal to = y , e.g. (2) x 6 pcs = 12
Please contact us for other combinations


All-In-One Computer Cart


Features (All-In-One Computer Cart)




Battery indicator

Battery indicator


Technical Specification (All-In-One Computer Cart)

Product Name All-in-One Computer Cart XCSIT511
Article number 1-021220-0545-011
Category Computer Cart
Measurements and Weight
Whole Body
External dimensions (W x D x H) [mm] 520 x 574 x 1866
Weight, body [kg] 55.4 (Without computer and monitor)
Length of coiled power cord [mm] 2000
Worktop
Height adjustment range [mm] 860 - 1310
Dimenions (W x D) [mm] 520 x 300
Maximum load capacity [kg] 25
Retractable drawer
Height adjustment range [mm] 770 x 1220
Dimenions (W x D) [mm] 480 x 300
Maximum load capacity [kg] 10
Castors
Diameter [mm] 4 double swivel castors (Ø 100 mm), which one electrically conductive with brake and one with directional lock
Materials
Base Steel plate with high impact ABS cover
Profiles & housing Anodised aluminum
Worktop Kydex
Retractable drawer Kydex
Handle Polypropylene with 20% thermo plastic rubber
Power Module
Battery type Lead gel
Capacity 12V, 480 Wh
Input voltage 100 - 240 VAC, 50/60 Hz
Design Fan-less
Computing System
CPU Intel NUC i3-5010U 2.10 GHz
Memory 8GB Ram
Storage 120GB SSD
WLAN Intel AC7260 with external antenna
Design Fan-less
Display
Monitor Holder
VESA VESA 75 or VESA 100
Function Self height-adjustable
Tiltable, swivelable, rotatable (90 °)
Maximum load capacity [kg] 7.2
Monitor
Display type LCD panel with LED backlight, Wipe disinfectable
Screen size [inch] 22
Screen resolution 1920 x 1080 Pixel, Full-HD
Equipment
Mouse Wipe disinfectable, IP65
Keyboard Wipe disinfectable, IP65, QWERTZ layout
Please contact us for other combinations


Further Information

Detailed specification on request.



Brochures

Brochures on request.



Certificates

Download   Download
