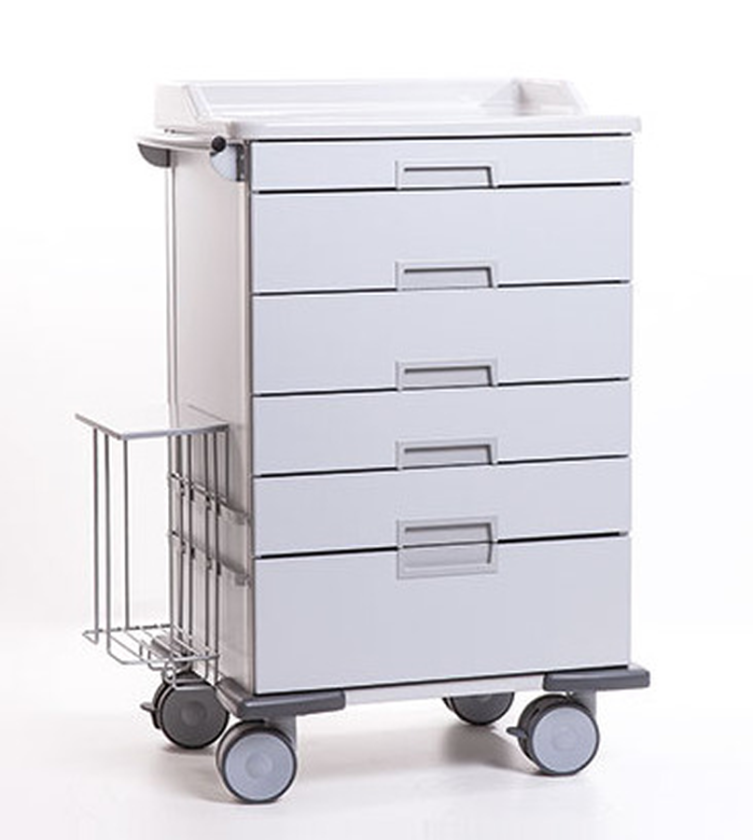

ISO Module Trolley XCSPW011

Availability: In stock
Item Number
1-021220-0520-011
€3,000.00 €3,570.00
ISO Module Trolley XCSPW011 - With ISO modular baskets, 600 x 400 mm - With ISO drawers or baskets 50, 100 and 200 mm high
Email to a Friend

ISO Module Trolley XCSPW011

The design of the ISO Module Trolley is a multifunctional, modular cart with numerous options in terms of configuration and applications. The 12 drawer positions can be tailored to your individual needs with drawers or baskets 50, 100 and 200 mm high (600 x 400 mm). You also have a choice of different colours for the drawers. The ISO Module Trolley can be served as different purpose based on the needs like the ER, residential and nursing homes, anesthesia, surgery,…



Height calculation for the drawers

For 600 x 400 mm modules and baskets.

Layout


Example of drawer combinations

Layout


Color options (drawers)

The color of the drawers can be personalized by selecting the below colours (can be a mix of colours).

Layout


Technical Specification

Product Name ISO-Nursing Cart XCSPW011
Article number 1-021220-0520-011
Category ISO-Nursing Cart
Measurements and Weight
Whole Body
External dimensions (W x D x H) [mm] 715 x 570 x 1047
Weight, body [kg] Depending on configuration
Worktop
Height [mm] 998
Telescopic runners
Maximum load capacity [kg] 45
ISO Module or basket
Dimensions (W x D) [mm] ⁼¹² ○ 600 x 400
(H) [mm] ○ 50 ⁽¹⁾
  ○ 100 ⁽²⁾
  ○ 100 (with 50 mm extra space) ⁽³⁾
  ○ 200 ⁽⁴⁾
Tray for clear medication organizer
Dimensions (W x D) [mm] ○ 600 x 400
Clear medication organizer tray S ⁶ (D x W x H) [mm] ○ 400 x 92 x 82
Clear medication organizer tray M ⁴ (D x W x H) [mm] ○ 400 x 132 x 100
Clear medication organizer tray L ³ (Dx W x H) [mm] ○ 400 x 186 x 82
Tray for opaque medication organizer
Dimensions (W x D) [mm] ○ 600 x 400
Opaque medication organizer SL ⁶ (D x W x H) [mm] ○ 89 x 384 x 55
Opaque medication organizer LL ⁴ (D x W x H) [mm] ○ 131 x 384 x 55
Opaque medication organizer SH ⁶ (Dx W x H) [mm] ○ 89 x 384 x 131
Opaque medication organizer LH ⁴ (Dx W x H) [mm] ○ 131 x 384 x 131
Tray for covered medication organizer
Dimensions (W x D) [mm] ○ 600 x 400
Covered medication organizer ⁸ (D x W x H) [mm] ○ 67 x 385 x 41
Castors
Diameter [mm] 4 double swivel castors (Ø 125 mm), which one brake and one with directional lock
Materials
Bottom Grey coated steel
Bumpers PU foam
Corner profiles Anodised aluminum
Panels Core with HPL finish
Worktop Kydex - chemical resistant, anti-bacterial
Handle Aluminium
ISO Module ABS plastic or transparent PC plastic
ISO basket ABS plastic or transparent PC plastic
Equipment
Components
ISO Module or basket in heights of 50 mm
ISO Module or basket in heights of 100 mm
ISO Module or basket in heights of 100 mm (with 50 mm extra space)
ISO Module or basket in heights of 200 mm
Clear medication organizer S / M / L
Opaque medication organizer SL / LL / SH / LH
covered medication organizer
Telescopic runners
Soft-closing function
Lock
Lock the carts and monitoring the administration of medication
A keypad with PIN code to grant access via badge, password etc
Index
● Standard
○ Optional
Sum of (x) should equal to = y , e.g. (2) x 6 pcs = 12
Please contact us for other combinations


Accessories

Layout


Reference for different combinations

Layout


Further Information

Detailed specification on request.



Brochures

Brochures on request.



Certificates

Download   Download
