PRODUCT DESCRIPTION

It consists of :

- deepened worktop, with 360º rotation : made of stainless steel 0H18N9*

- frame : made of stainless steel 0H18N9*

- hydraulics adjustable height with a foot pedal in a range of 960-1330 mm

- base fitted with 100 mm single casters, each with braking mechanism

- Optional: top rotation lock

(*) it is equivalent of DIN standard: X5CrNi 18 10, EN standard: 1.4301

Product Name	XCINT-08.E01KO
Item number	1-201304-0821-501 1-201304-0821-502
Category	Instrument Tables
Measurements and Weight
Overall Dimension (L x W x H) [mm]	750 x 500 x 960 - 1330
Worktop Dimension [mm]	700 x 450
Worktop Height [mm]	960 - 1330
Workload [kg]	10 -15 proportionally on whole surface
Gross Weight [kg]	ca. 55
Equipment
Mobility aids
Castors [Ø mm]	● 3 x Ø100 mm, noise-free castors, each with brake
Height Adjustment Mechanism	Hydraulic
Design
Worktop Design (Standard)	● Deepened, with 360° rotation
Worktop Design (Optional)	○ Removable Top XCINT-01
Material
Worktop	Stainless steel 0H18N9 *
Frame	Stainless steel 0H18N9 *
Castors	Plastic
Index
● Standard
○ Optional
* it is equivalent of DIN standard: X5CrNi 18 10, EN standard: 1.4301

Detailed specification on request.

Brochures on request.

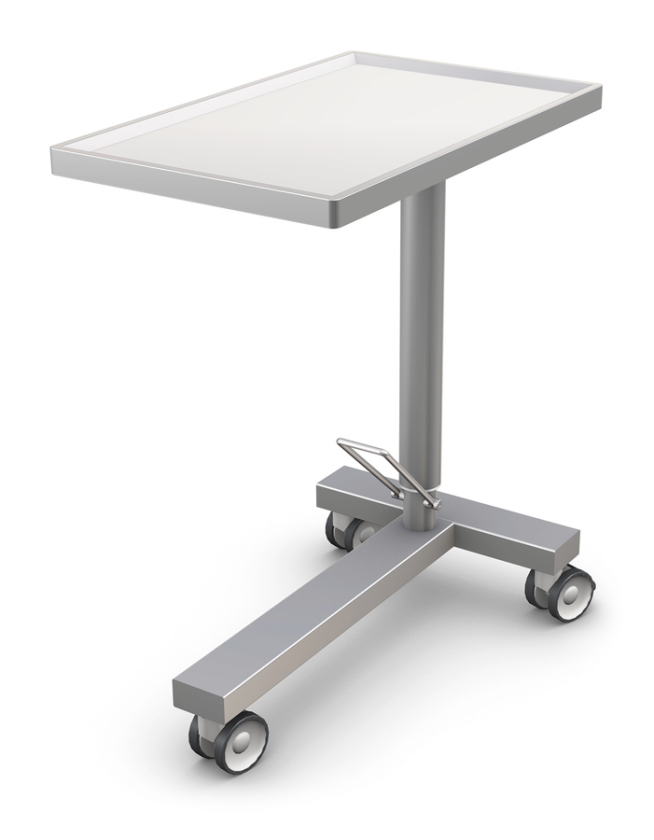

Instrument Table XCINT-08
