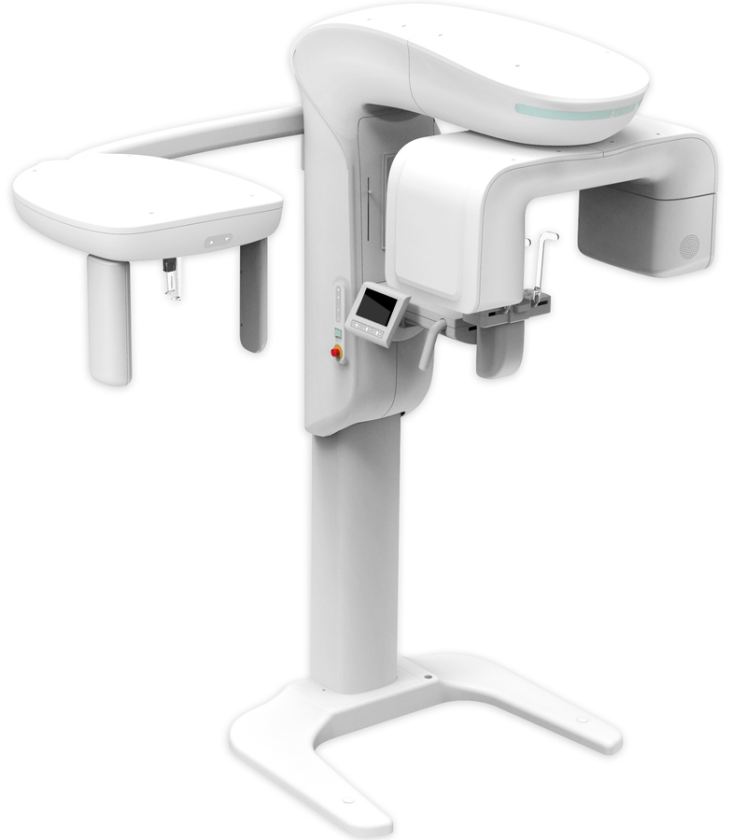

Dental CT - Smart3D (3 in 1)

Availability: In stock
Delivery Time : By individual agreement
Item Number
1-121822-0610-012
€61,880.00
Special Price €49,300.00 €58,667.00

Smart3D (3 in 1) offers all 3 (CBCT, CEPH and PAN) in one device with 360 degrees full angle accurate scanning, 0.5mm minifocus X-Ray tube, 27micrometer CCD Ceph sensor, Patient Anti-Collision indicating device, integrated sensor for both 3D and Panoramic Images, along with a touch screen.

Email to a Friend

Smart3D (3 in 1) has 3 functions: CBCT, CEPH, and PAN.

Flexibility

- Offering a touch screen with a membrane button allowing an easier method for disinfection. 6 laser beams are present for accurate positioning. An integrated inbuilt sensor used for Pano and CT. Electric Chinrest guides. One-click setting for multiple scan modes.

Flexible-Safe-Clear

- Adhering to its all great image quality, LargeV’s new release of Smart3D 3 in 1 offers Felixibility, Clarity and Safety in one device. Serving 3 functions: CBCT, PAN and CEPH, Smart3D aims to provide the best image quality at a resolution of 2.0 lp/mm with an optional FOV Flexibility (5cm x 5cm-15cm x 8cm); associated with a minifocus X-Ray Tube, a Ceph detector as well as a CT detector. TrueMAR for metal artefact removal is also integrated.

CBCT Functions

Safe to use

- Patent anti-collision indicating device. Zero dose presentation mode for relaxing. TMJ Mode. Full/Half width Ceph mode optimizing dose.

Clear Images

- 360 Degrees Scan
- Flexible 5cm x 5cm – 15cm x 8cm FOV (optional)
FOV

- Resolution: 2.0 lp/mm, 0.1-0.25mm Voxel Size
Voxel Groß
- 0.5mm Minifocus X-Ray Tube ensuring superior image quality
Minifokus

- TrueMAR Correction Module for Metal Artefact Removal
TrueMAR
- Clear 2D Images

PAN and CEPH Functions

- Definition Mode
Dentitionmodus

- Shape of Dental arch
- Joint Mode
- Carpus Image for bone age estimation
- Word-leading 27 micrometer CCD Ceph Sensor
CCD Ceph Sensor

- Full/Half width images optimizing dose
Breitenbildoptimierungsdosis"

Convenient Diagnostic Software

Implant Simulation
- Evaluation of scelrotin and mass of bone in the implated area.
- Determination of the location (position, length and diameter) of the implants and adjacent anatomical structures; aiming at the reduction of neurovascular injuries complications as well as improving the success rate of implantation.
Bone Density indications Knochendichtenanzeigen
SmartCeph- Cephalometric Measurement Software SmartCeph
TMJ Joint Diagnosis - Displaying left and right TMJ on one screen, providing more information for the diagnosis of TMJ disorders.
Straightforward 3D display - Allowing users to communicate easily.
Precise reconstruction - The voxel size (up to 0.05mm) offers a more suitable diagnosis of Endodontics disease.



Technical Specification

Product Name Smart3D (3 in 1)
Item number 1-121822-0610-012
Category Dental CT
Measurements and Weight
Overall Dimension (W x L x H) [mm] With cephalostat:
1978 x 1526 x 1693-2393
  Without cephalostat:
1100 × 1526 × 1693-2393
Distance from chin rest to the ground 932-1712
Space requirement (W x L x H) [m] With cephalostat: 2.5 × 2.1 × 2.5
  Without cephalostat: 1.6 × 2.1 × 2.5
Approximate Weight [kg] With cephalostat: 335
  Without cephalostat: 285
General Specifications
Scan Position Standing
Scan Angle 360°
Status Lighting Indicator Green when ready
Red when image taken
Positioning System • Electric chin rest
• Head positioner
•Ear Clip, nose frame and palm rest
• Anti-collision indication
• Six laser beam for accurate positioning
Controller LCD Touch screen
Imaging & Visualization
Software Smart V®, Smart V®Dicom, Smart V®Database Manager
Image Processing 2D /3D image, Pseudo color, S/W, Panorama, Cephalometric measurement, Slice display, Image zooming and panning, Implant simulation, Bone density indications, Temporomandibular joint (TMJ) imaging, Bone age estimation, TrueMAR correction, Full/half width images optimize dose, Dental arch, Joint mode, etc.
3D CBCT Modality
CT Sensor Type CsI+CMOS Flat Panel Detector
CT Field of View (FOV) (D*H) [mm] 5 x 5/ 8 x 8/ 12 x 8/ 15 x 8
CT Voxel Size [mm] 0.075 / 0.1 / 0.125 / 0.25
CT Scan Time 15 seconds
CT Exposure Time 13 seconds
CT Reconstruction time 15-40 seconds
Image Resolution Spatial Resolution ≥ 2.0 lp/mm
Panoramic Modality
Imaging Mode and Rang Adult/ child panoramic photography, TMJ photography (Left / Right)
Pan Sensor Type CsI+CMOS Flat Panel Detector
Pan Sensor Voxel Size 0.1mm
Pan Scan Time 6-11 seconds
Image Resolution spatial resolution ≥3.0lp / mm
Cephalometric Modality ( Optional )
Imaging Mode and Rang Cranial lateral (full-size or half-size), Anteroposterior, Palm
Ceph Sensor Type Csl + CCD TDI Detector
Cep Sensor Voxel Size 27 µm
Ceph Scan Time 8-13 Seconds
Image Resolution spatial resolution ≥5.0lp / mm
X-Ray Generator
X-ray Tube Type Minifocus 0.4 mm
X-ray Tube Voltage 60-100 kV
X-ray Tube Current 2-10 mA
Focal spot 0.5 (IEC336)
Max Exposure Power 600W
Installation Data
Operating Temperature 10°C - 30°C
Storage Temperature -20°C - 55°C
Humidity ≤75%
Power Supply AC220V±10%, 50Hz, 2000VA
Warranty 2 years
Workstation PC requirements (minimum)*
Operating System Windows 7 (64-bit), Windows 8 (64-bit), Windows 10 (64-bit)
CPU Intel Dual-Core i3 or above
Memory 8GB Ram or above
Graphic Card NVidia GeForce GT640 or above
  * For full details on supported PC
requirements, please contact us for the latest information.



Further Information

Detailed specification on request.



Brochures

Brochures on request.



Certificates

Download   Download   Download   Download
