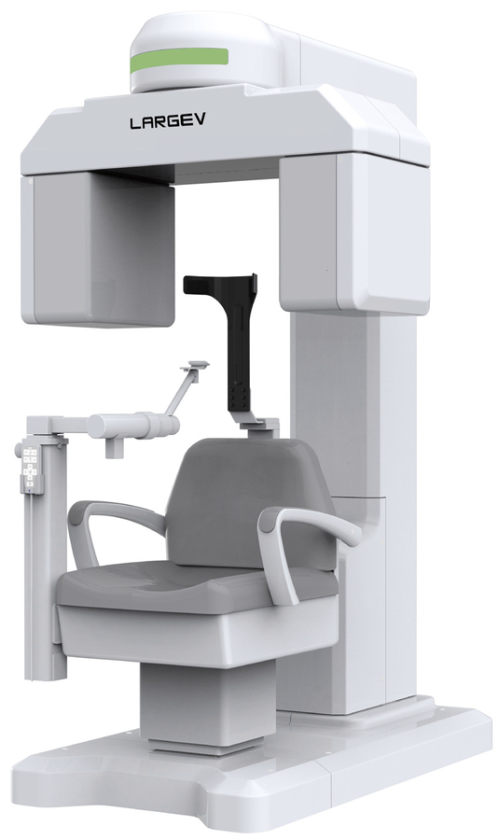

Dental CT - HiRes3D

Availability: In stock
Delivery Time : 2-3 Tage
Item Number
1-121822-0338-001
€87,108.00
Special Price €63,000.00 €74,970.00

Outstanding Image Quality with Low Dosis The HiRes3D equipment acquires a highly accurate 3D image of the whole oral cavity with resolution as high as 2.6 lp/mm after a single scan. The compact size and ergonomic design enable it to be used in restricted spaces.

Email to a Friend

Outstanding Image Quality with Low Dosis

The HiRes3D equipment acquires a highly accurate 3D image of the whole oral cavity with resolution as high as 2.6 lp/mm after a single scan, which results in effectively meeting the requirements of the dental implant, the impacted teeth positioning, the oral surgery evaluation, the dental disease diagnosis and other oral applications.

The compact size and ergonomic design enable it to be used in restricted spaces. With the latest GPGPU (General-Purpose Computation on Graphics Processing Units) acceleration technology, the system is capable of accomplishing the reconstruction of the 3D image for the whole oral cavity in less than 15 seconds. The highly accurate 3D image helps to acquire more comprehensive and precise information, making the treatment plan more accurate and the treatment effect more predictable, and eventually helping medical organizations expand the service scope and improve the comprehensive service quality.

Features

Data Sharing with Build-in Mini PACS

HiRes3D’s built-in MINI PACS module can ensure effective storage, use and share of images in different sites.

Built-in MINI PACS module

Metal Artifact Removal

The unique metal artifact removal function of HiRes3D can reduce the influence of the metal or other high density materials, and significantly improve the image Quality.


Before Correction   After Correction


Clinical Case Studies

Diagnosis and Planning Design before Implantation

Examine the thickness of alveolar bone and the distance to nerviduct before implanting, so that the doctor can choose the most proper implant.




Evaluation after Implantation

Use the cone beam computed tomography to examine the position and orientation of implant after the implanting procedure. The effective metal artifacts removal technique can help the doctor to determine the synosteosis.



Before Metal Artifact Removal   After Metal Artifact Removal


Examination of Temporomandibular Joint

The high-resolution 3D images produced by HiReS3D and the cross-section reconstruction of SmartV help to display condylar structure clearly, providing more information for the diagnosis and treatment of temporomandibular joint disorders.

Temporomandibular Joint Disorders


Examination of Endodontic and Periodontal Diseases

The pixel size of reconstructed images of HiRes3D can reach 0.125 mm, and the resolution is as high as 2.0 lp/mm, providing rich and accurate information for the examination of endodontic and periodontal diseases. Compared with ordinary X ray image, HiRes3D’s image avoids overlapping of the teeth and the jaw, clearly shows the anatomical structure of tooth root canal, internal and external root resorption, side perforation, omission of root canal, longitudinal crack on root, periapical bone destruction, the location and degree of alveolar bone defect. HiRes3D is very effective for preoperative diagnosis and follow-up observation of dental diseases, especially root canal anatomy, complicated periapical periodontitis and periodontitis.

Root Fracture Periapical Periodontitis


Examination of Crystis and Tumor

The panoramic view and 3D slice view of HiRes3D can help the doctor to detect the crystis and tumor more directly, which is important for the diagnosis and treatment planning.

Bone Tumor Maxillary Sinus


Positioning of Impacted and Supernumerary Tooth

Compared with traditional 2D images, the 3D image of HiRes3D has great advantages in the impacted and supernumerary tooth positioning. HiRes3D can accurately show the shape and location of teeth, its positional relation with the adjacent teeth or adjacent important anatomical structures (such as the maxillary and mandibular canal, etc.), and the external resorption of adjacent teeth, which helps dentists make more accurate treatment plan, evaluate the operation risk and prognose.

Supernumerary Teeth Impacted Tooth


Further Information

Detailed specification on request.



Brochures

Brochures on request.



Certificates

Download   Download   Download   Download



VISIT US at the INTERNATIONAL DENTAL SHOW (IDS) in COLOGNE

Xcelsitas and LargeV, a world leader in scanning technology, brought their expertise to the dental market and introduced the dental CT at IDS. The HiRes3D delivers unique value at an unmatched price-performance ratio and is designed to the needs of dentists, orthodontists and dental surgeons in all of Europe.

We have a rigorously-trained professional team, which can provide comprehensive presale technical and business support, complete market operation and product application solutions as well as after sale services whenever needed.

Xcelsitas and LargeV at IDS 2015

Xcelsitas Booth at IDS 2015

Download

Press Release 2015
