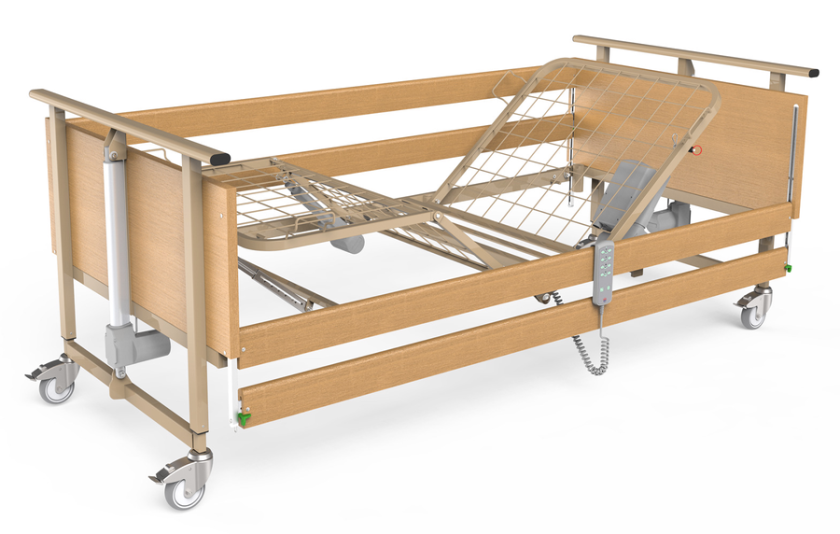

Care Bed XCABE-I90

Availability: In stock
Delivery Time : Around 11 Weeks
Item Number
1-161808-0120-100
As low as €928.00 €1,104.32
check The assembly can be done by 1 person in 5 minutes
check Foldable, easy to store
check Head and footboard design options
check Low bed design options
Email to a Friend


Technical Specification

Product Name XCABE-I90
Item number 1-161808-0120-110
1-161808-0120-120
1-161808-0120-130
Category Home Care Bed
Measurement
Total length [mm] 2190
Total width [mm] 1040
Dimension of reclining area/ lying surface (L x W) [mm] 2000 x 900
height adjustment [mm] ○ 400 - 800
○ 200 - 600
Number of platform sections 4-section
Safe working load [kg] 200
Motor 4
Castors / wheel (Ø mm, number) 4 x Ø 100mm, Single Castor with Brake
Operating Angles & Positions
Trendelenburg [°] ○ 12°
Electric
Anti-Trendelenburg [°] ● - 12°
Electric
Back Section [°] ● 0 ° - 72°
Electric
Upper Leg /Thigh rest Section [°] ● 0 ° - 45°
Electric
Lower Leg / Calf rest Section [°] ● 24°
Mechanic
CPR
Manual
Performance features
Type of side rail 4 divided side rails
Mattress Retainer 4
Safety features
Controller with central locking function by using magnetic key
Accessories
Battery
IV pole
Lifting pole
Portable Nurse Control Panel / Remote Control Ergonomic hand control with large buttons and LED Backlight
Mattress
Material & Color
Material of the Desk Panels Steel
Material of the Side Rails Wood
Material of the Headboard and footboard Wood
Color choice Beech
Technical Specs
CE
EN 60601-2-52 IEC 60601-2-52:2010
Water Resistance IP X4
Index
● Standard
○ Optional
-- not available


Further Information

Detailed specification on request.



Brochures

Brochures on request.



Certificate

 CE Certificate  ISO 9001 Certificate  EN ISO 13485 Certificate  ISO 14001 Certificate
