BenQ T3300

Availability: In stock
Delivery Time : 2-3 Werktage
Item Number
1-021417-0202-003
€12,980.00 €15,446.20

Delivering POCUS Solutions Color doppler upper mid level tablet hcu with 13,3" touch-screen monitor and 1 transducer socket. With gestures management, ultra-slim, ultra-light (2.7 kg). Optimal for POCUS and OR. iF Design Award 2018

Email to a Friend

HTML5 Video is not supported by this browser

Delivering POCUS Solutions

BenQ T3300, a culmination of years of innovation, is a new elegant expert hand-carried color Doppler ultrasound system, combining extreme ergonomic design, excellent image quality, exact diagnosis as well as a wide range of applications for an unprecedented experience. Enjoy an easy to use ultrasound system with advance technology that ensures diagnostic confidence at any level of user expertise.

Features



iF Design Award Winner 2018

BenQ T3300 was awarded in 2018 with iF Design Award.
iF Design Award 2018 "T3300 is a compact, clean, and durable diagnostic ultrasound system, featuring a 13.3" touchscreen, especially suitable for mobile medical service. The foldable stand and the detachable probe cup allow it to be wall-mounted, trolley-mounted, table-set, or hand-carried. T3300 features an enhanced waterproof and impact-resistant design for ultrasound diagnostics examinations outside the clinic. Android OS provides T3300 with superior cooling and power-saving effects, as well as an intuitive user experience." More information



Technical Specification (incl. Feature Overview)

PRODUCT NAME BENQ T3300
Item number 1-021417-0202-003
Ultrasound System
Short description Tablet Color Doppler high level hcu with 13.3" monitor and 1 transducer socket. 64 phys. channels, 10 imaging levels. Ultra-slim, ultra-light. With gestures control.

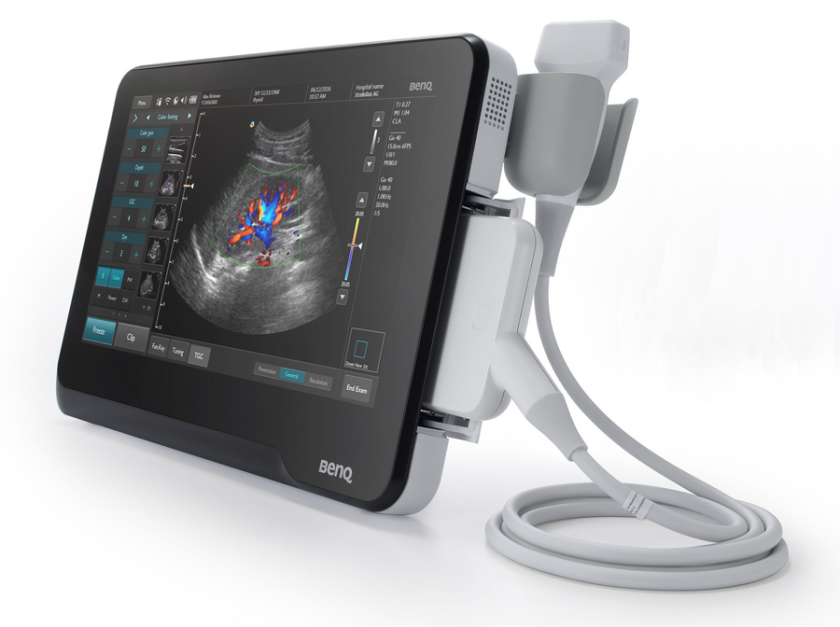

Product Image BenQ T3300
Multi Beam Processing Technology
Physical Channels 64
Imaging Levels 7
Hardware
Monitor 13.3" HD TFT LCD Wide
Resolution in px 1,920x1,080
Flexibility --
Control Panel
Flexibility --
Bottom side Holders for Probe Cables (left/right) ○ (at trolley)
Slip-on stand-up Cable Holder for Probe Cables ○ (at trolley)
Additional Probe Holder for Endocavity Probes --
Touch-Screen Panel --
Keyboard
Touch-Screen Panel Keyboard (multi-lingual; 11 Languages) virtual keyboard
Extendable alphanumeric Keyboard at the Control Panel front side --
Probe sockets 1 (with optional extender up to 3)
Transducers
Number of compatible Probes 4 (will be extended to 10)
HD Probes
Frequency Range 2-18 MHz
Adoption of 4D Probes --
Adoption of Linear Probes
Adoption of HD Linear Probes (256 Elements) --
Adoption of Convex Probes
Adoption of HD Convex Probes (192 Elements)
Adoption of Latest Generation Convex Probes (3C-A)
Adoption of Single-Crystal Convex Probes --
Adoption of Micro-Convex Probes
Adoption of Biplane Probes --
Adoption of Endocavity Probes
Adoption of Phased Array Probes
Adoption of Latest Generation Phased Array Probes  (3P1, 5P2, 8P1)
Adoption of Laparoscopy Probes --
Adoption of TEE Probes --
Adopion of Pediatric TEE Probes --
Socket for Pencil Probes --
Adoption of CW Pencil Probes --
Adoption of PW Pencil Probes --
Biopsy Guide Brackets optional steel biopsy guide brackets (for re-sterilization) or single-use biopsy guide brackets
Additional Sockets --
Integrated Gel Warmer --
Handles ○ (trolley with front handle and rear handle for easy transportation)
Battery ● Built-in battery for 1.5h scan time
○ extandable up to >3 h scan time
Printer link-up to B/W thermal printer or color video printer
Castors ○ (trolley with 4 fully flexible 4.5" castors with 4 lockers)
Storage
Storage Media
HDD Storage --
SSD Storage 128 GB
CD/DVD-RW --
Blu-Ray-RW --
Image Storage Capacity 5,000
Cine Speicher
Cine Loop (images in B Mode) 512
Cine Playback Time adjustable
Frame Rate in B Mode (2D) 300 fps
Software (multi-lingual: 11 Languages)
Comprehensive Measurement and Calculation Software 5 general measurements, 30 application-specific measurements
Premium Imaging Modes
Tissue Harmonic Imaging (THI)
Phase Inversion Harmonic Imaging (PHI resp. PIH)
Lateral Gain Compensation (LGC)
Spatial Compound Imaging (SCI)
Speckle Reduction Imaging (µ-scan)
M-Tuning (automatic 1-Click Image Optimization for 2D, Color and Doppler Mode)
Trapezoidal Imaging
Elastography Imaging (Linear Probe) (C-Xlasto) --
MicroScan
2D Panorama Imaging --
Color Flow Panoramic Imaging --
Color 3D --
Real Time 3D/4D --
Inversion 4D --
S-Live --
S-Depth --
Freehand 3D Imaging --
3D µ-scan --
Auto Face --
3D Measurement --
Pelvic Floor Ultrasound --
MagiCut/SmartCut --
Auto-IMT Measurement (Intima Media Thickness)
High Pulse Repetition Frequency (HPRF) --
Contrast Imaging --
Stress Echo --
Cardio Vascular Kit
Cardio Vascular Kit Premium PLUS --
OB/GYN Kit --
OB/GYN Kit Premium PLUS --
Needle Visualization Enhancement (VIS-Needle)
Basic Imaging Modes B-Mode (2D Mode: 2B), M-Mode, THI, CFM, PDI (DPI), PW, CW, Triplex
Display Formats B, Dual B, B + PW, B + CW, B + M, B + Color, Dual B (Flow), B + Color + PW, B + Color + CW, B + Color M, Panoramic imaging, Trapezoidal imaging
Integrated Patient Data Management System
Operating System Android 4.4
Interfaces
Data 2 USB Ports, SD Card Slot
Network LAN, Wi-Fi, Bluetooth
Video HDMI Video OUT, S-Video OUT
Audio Audio
Power LINE IN, electrical bonding
DICOM 3.0 Support DICOM Store, Worklist, Print
Export Formats
Supported Video Formats MP4
Supported Image Formats JPG
Supported Document Formats --
Clinical Application
General and Internal Medicine
Cardio Vascular
OB/GYN
Urology
Vetinary
Orthopedics
Surgery
ENT
Pediatrics
Anesthesiology
Recommendations
DEGUM complies with DEGUM Class 2
OEGUM recommended (OEGUM whitelist)
Dimension and Weight
WxDxH [mm] 350x235x35
Weight [kg] 2.7 (with battery)
Inspection and Maintenance
MPD Class II A
Preventive Maintenance every 6 month
MTK every 12 month
STK every 12 month
Maintenance Check-up
Inspection and Maintenance Contract
Full-Service Contract
Warranty
Xcelsitas Warranty 18 month
Warranty Extension optional up to 5 years
Spare Part Availability >15 years
Legend
   yes/included
   optional
--  not available


Further Information

Detailed specification on request.
