B868y-a

Availability: In stock
Delivery Time : 2-3 Tage
Item Number
1-080612-0111-013
€2,258.62
Special Price €1,448.00 €1,723.12

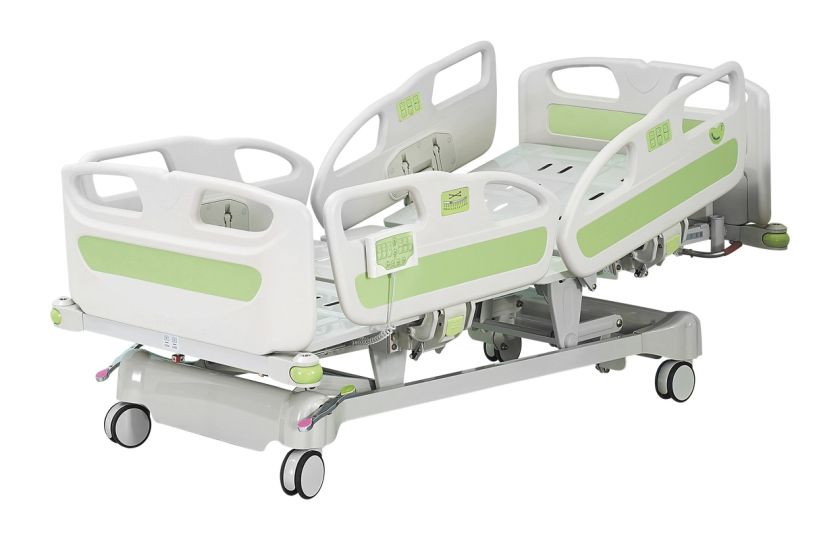

Electric ICU Bed 5 functions ICU bed with LCD nurse control, manual and electric CPR and bed extension.
Email to a Friend

Robust electric bed with main functions

The B868y-a is designed to serve the main functions required during daily hospital routine. Back and knee section can be moved electrically up and down as well as the whole bed. Trendelenburg and reverse Trendelenburg can be done and a back section decompression function is included as well. With its four bumpers and the 5 inch central locking castors the B868y-a is robust and safe at the same time.

Safety features and comfort

B868y-a has a manual CPR function for emergency and four European style all surrounding bedside rails. The extensible bed end offers more comfort in case and a backup battery protects the user against disfunction of the electric controls.

Features

Functions

back section up&down   Back section up&down
knee section up&down   Knee section up&down
whole bed up&down   The whole bed up&down
Trendelenburg   Trendelenburg
reverse Trendelenburg   Reverse Trendelenburg
back section decompression function   Back section decompression function
extensible bed end   Back end extension
manual CPR function   Manual CPR function
backup battery   Backup battery


ISO Certified Production

The production processes are certified according to ISO 13485:2012 and ISO 14001:2004 and the by far largest production site in Shenzhen area (South China). The whole workflow including moulding and production of the wheels is done at that site. Extensive quality control guarantees the continuos high quality of beds produced.

Hope-Full Company's Video on Bed Production

Click to watch video



Technical Specifications

Model
B868y-a
Bed length (w/o bed extension) [mm]
2,200
Bedwidth [mm]
1,200
Height adjustment (up/down, w/o pad) [mm]
430-700
Bed end extension [mm]
150
Reclining area length x width [mm]
2,000 x 900
Max. patient weight [kg]
230
Bed weight [kg]
165
Trendelenburg/Reverse Trendelenburg
12° / 12°
Lateral tilt (left/right)
n/a
Motor
4 actuators (Linak)
Diameter double castor [mm]
125


Further Information

Detailed specification on request.

Brochures

Detailed specification on request.
