All-in-One Computer Cart XCSIT513

Availability: In stock
Delivery Time : By individual agreement
Item Number
1-021220-0545-013
€4,671.00 €5,558.49
All-in-One Computer Cart XCSIT513 The fully built system included monitor, operation system and battery kit in one smartly designed configuration which allows user plug-and-play and avoids from fussing with cables, setup or multiple maintenances.
Email to a Friend

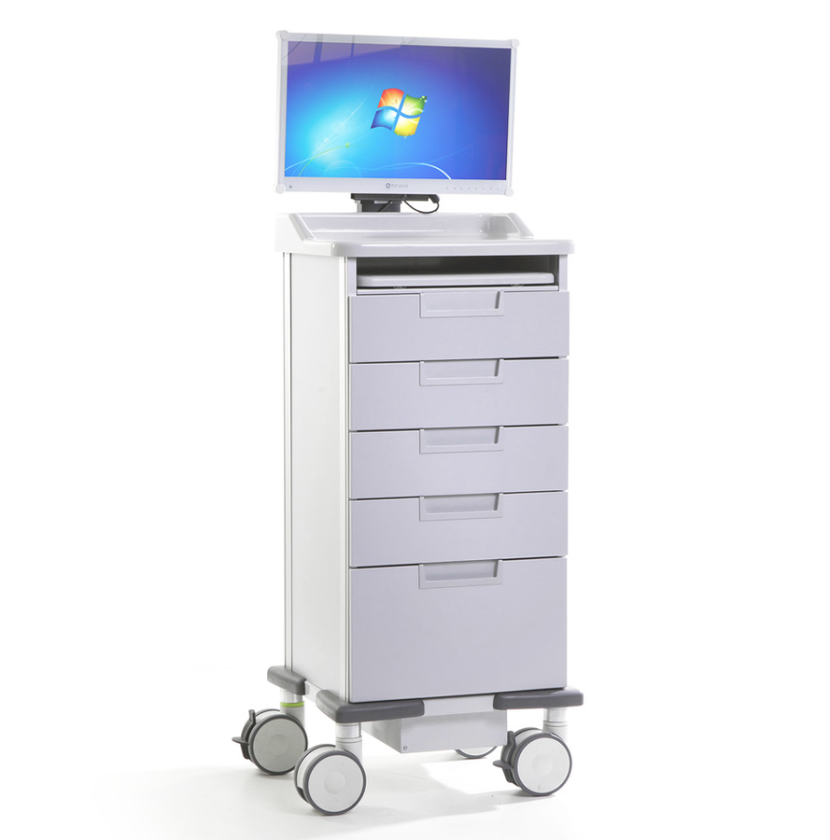

All-in-One Computer Cart XCSIT513

The all-in-one computer cart guarantees all electronic medical records can be consulted and updated by the caregivers immediately throughout the entire hospital. The fully built system included monitor, operation system and battery kit in one smartly designed configuration which allows user plug-and-play and avoids from fussing with cables, setup or multiple maintenances. Aside from easy setup, the all-in-one computer cart is designed to be as ergonomic as possible to reduce caregiver’s workload. Meanwhile all cables are hidden to keep perfect environmental hygiene.



Features

Battery indicator

Battery indicator


Technical Specification

Product Name All-in-One Computer Cart XCSIT513
Article number 1-021220-0545-013
Category Computer Cart
Measurements and Weight
Whole Body
External dimensions (W x D x H) [mm] 514 x 476 x 1030.5
Weight, body [kg] Depending on configuration
Worktop
Height [mm] 984.5
Telescopic runners
Maximum load capacity [kg] 45
ISO Module or basket
Dimensions (W x D) [mm] ○ 300 x 400
(H) [mm] ○ 50
  ○ 100
  ○ 200
Castors
Diameter [mm] 4 double swivel castors (Ø 125 mm), which one brake and one with directional lock
Materials
Bottom Grey coated steel
Bumpers PU foam
Corner profiles Anodised aluminum
Panels Core with HPL finish
Worktop Kydex - chemical resistant, anti-bacterial
Handle Aluminium
ISO Module ABS plastic or transparent PC plastic
ISO basket ABS plastic or transparent PC plastic
Accessories
Components
ISO Module or basket in heights of 50 mm ○ ¹
ISO Module or basket in heights of 100 mm ○ ²
ISO Module or basket in heights of 100 mm (with 50 mm extra space) ○ ³
ISO Module or basket in heights of 200 mm ○ ⁴
Cabinet interior panels ¹²
Telescopic runners
Soft-closing function
Lock
Lock the carts and monitoring the administration of medication
A keypad with PIN code to grant access via badge, password etc
Power Module
Battery type Lead gel
Capacity 12V, 480 Wh
Input voltage 100 - 240 VAC, 50/60 Hz
Design Fan-less
Computing System
CPU Intel NUC i3-5010U 2.10 GHz
Memory 8GB Ram
Storage 120GB SSD
WLAN Intel AC7260 with external antenna
Design Fan-less
Display
Monitor Holder
VESA VESA 75 or VESA 100
Tilt [°] 30
Rotation [°] 90
Lift [mm] 130
Maximum load capacity [kg] 7.2
Monitor
Display type LCD panel with LED backlight, Wipe disinfectable
Screen size [inch] 22
Screen resolution 1920 x 1080 Pixel, Full-HD
Equipment
Mouse Wipe disinfectable, IP65
Keyboard Wipe disinfectable, IP65, QWERTZ layout
Index
● Standard
○ Optional
Please contact us for other combination


Further Information

Detailed specification on request.



Brochures

Brochures on request.



Certificates

Download   Download
